Industrial Air Duct Dust Collector 220V |
|
|
|
|
|
|
 |
|
Product
Overview |
|
The industrial air duct dust cleaner is a
device specifically designed for cleaning away dust, dirt and other
impurities in the industrial environments, and is generally used in
large industrial sites such as factories, warehouses and workshops. Its
main function is to ensure the cleanliness and safety of the working
environment while improving the production efficiency. |
|
Product
Parameters |
|
Voltage |
220V
single-phase electricity
(A 110V transformer is
given as a gift. If your power supply is 110V, please connect
the equipment to the transformer and then connect the
transformer power supply to the 110V power supply.) |
|
Power |
2200W |
|
Air volume |
4000m³/h |
|
Length of air duct |
5m (16.4ft) |
|
Diameter of air opening |
≤500mm (19.7 inches) |
|
Ceiling height |
1.5-3m (4.9-9.8ft) |
|

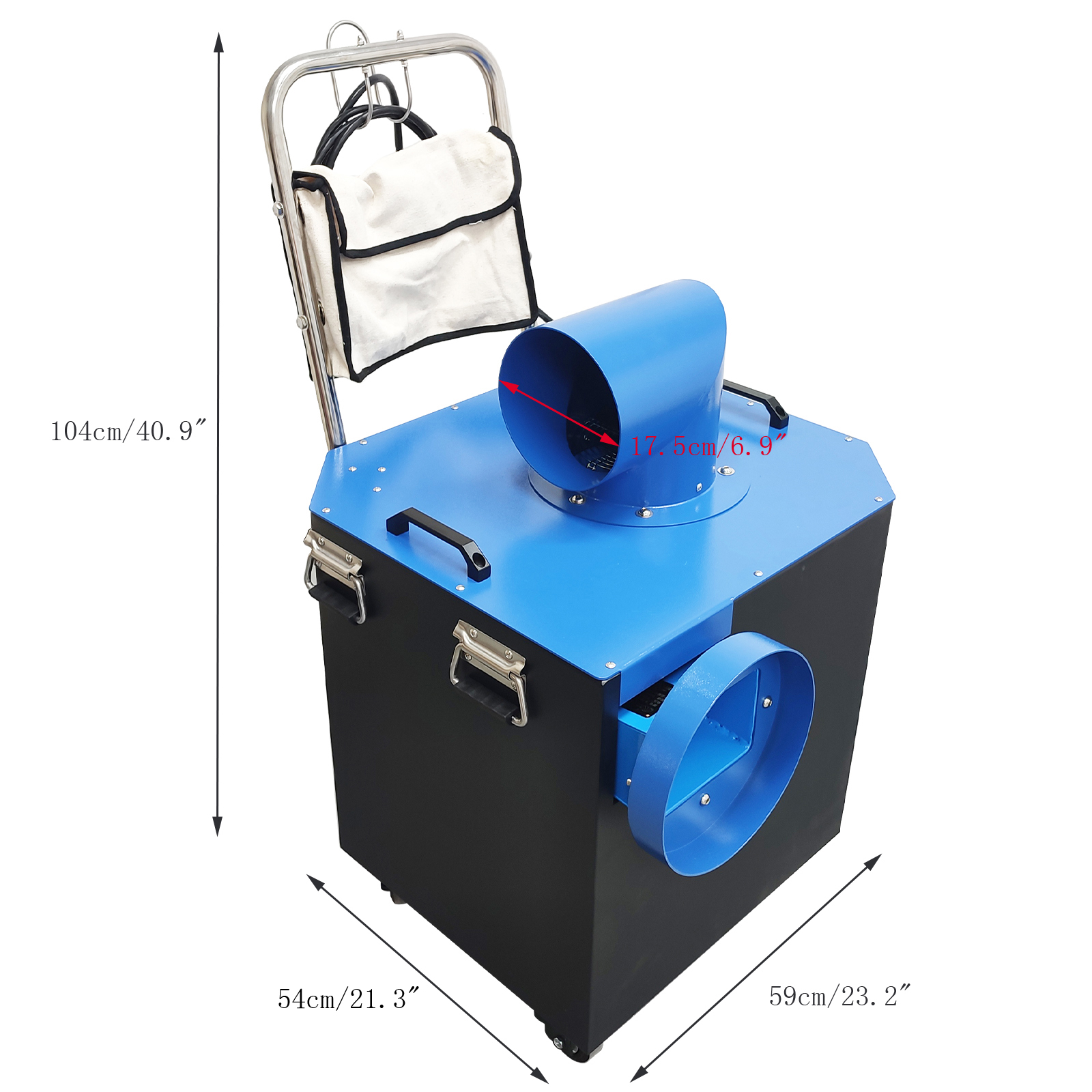

Size of main machine |
59*54*104cm (23.2*21.3*40.9 inches)
(There is
an error in manual measurement.) |
|
 |
|
Attention |
1. Pay attention to keeping the power
supply voltage consistent with the equipment to prevent damage to the
equipment.
2. Please install the screws of the air duct and brackets in place to
avoid the personal injury.
3. Before cleaning the dust collection bag, be sure to turn off the
power, and then remove the dust bag.
|
|
Product
Features |
 |
|
|
|
|

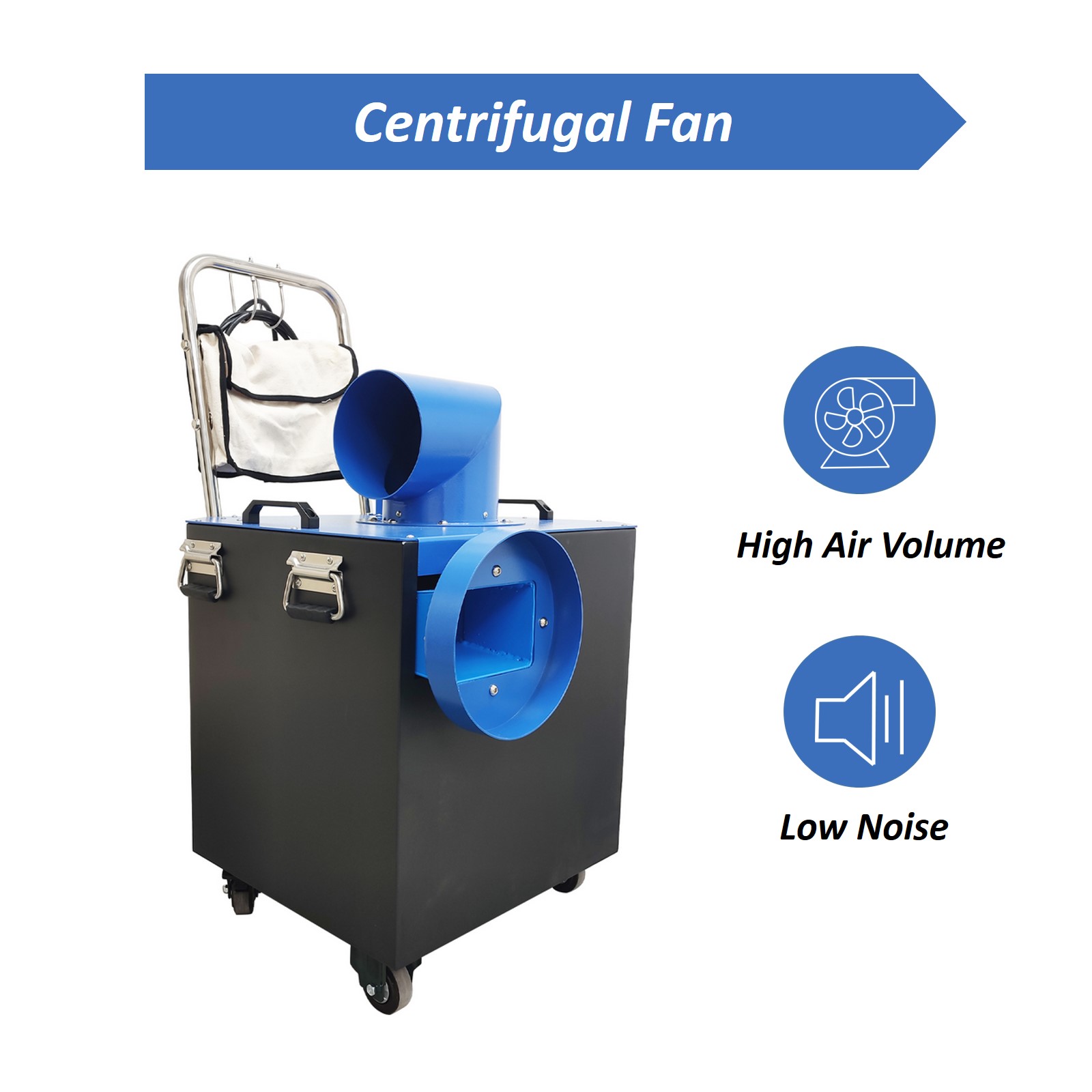

| The
dust collector is equipped with a high-quality pure copper
centrifugal fan, the air volume can be 4000m³/h, and the suction
can be higher. The high molecule sound absorbing material is
adopted, thereby effectively reducing the noise and improving
the user experience. |
|

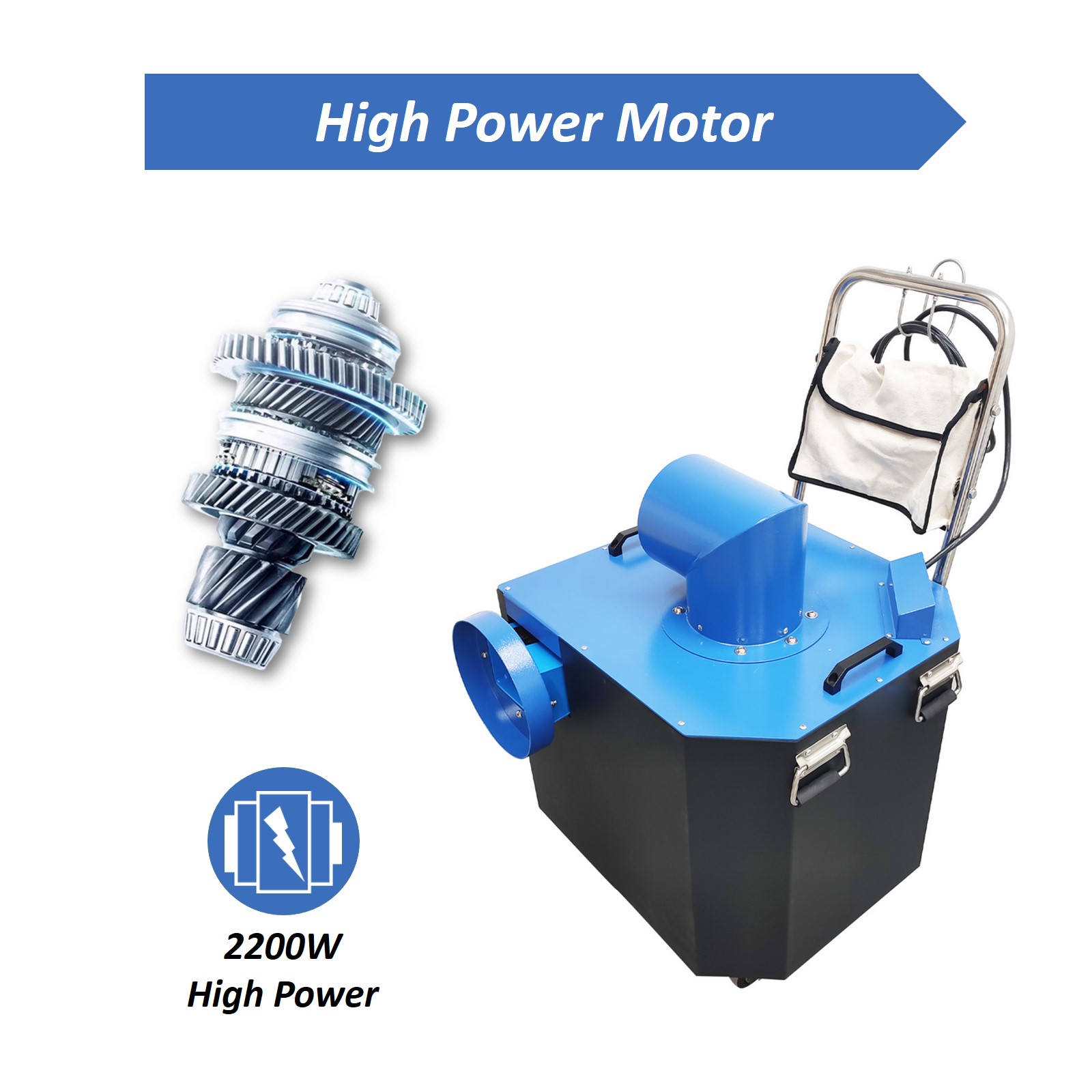

The high-quality
motor with 2200W power is adopted, the higher driving force can
be provided for the dust collector, the power is strong and
lasting, the dust absorption speed is higher, and the work
efficiency can be improved as much as possible. |
|
|
|
|
|

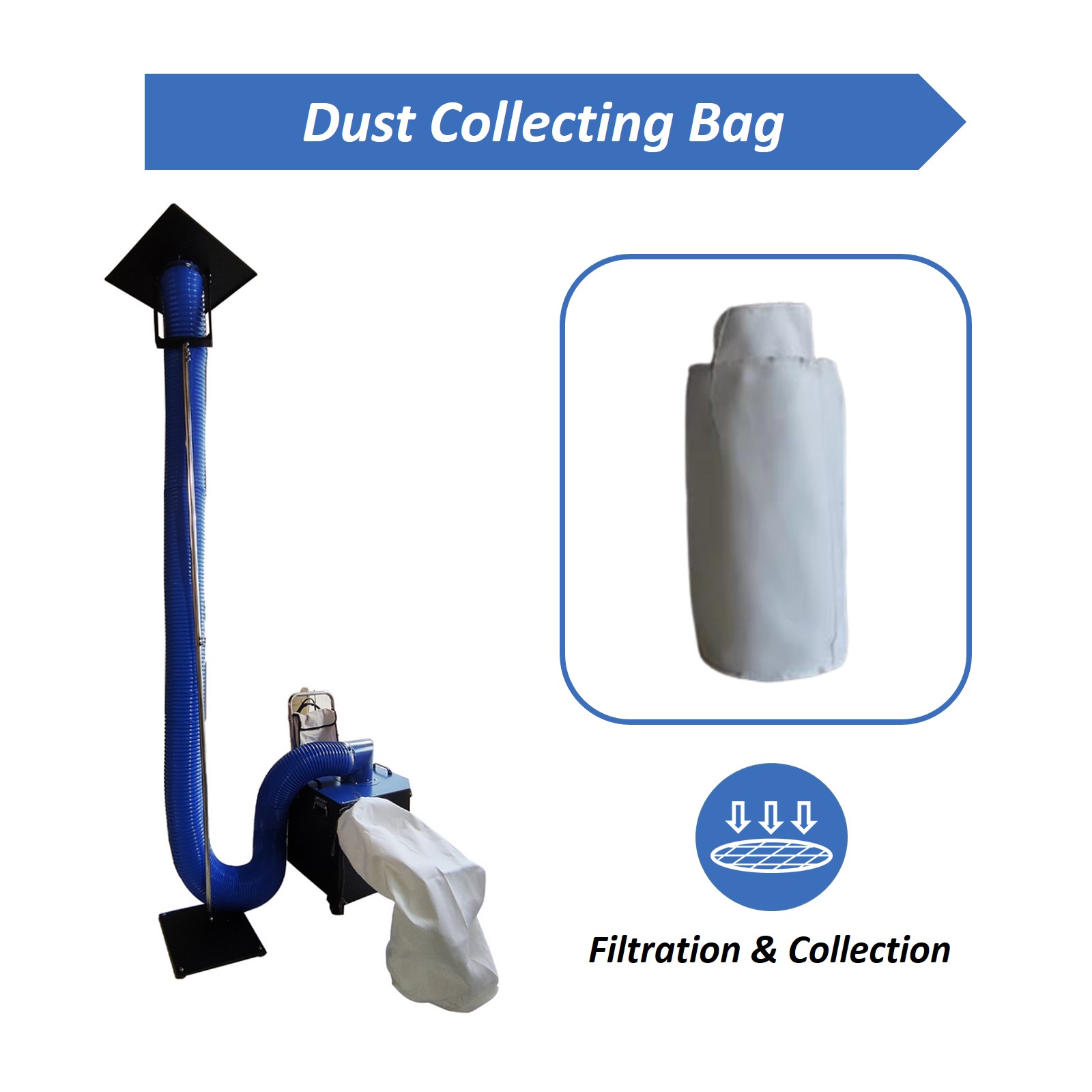

| The
machine is exclusively equipped with a dust removal filter bag,
the dust collection is more efficient, and the fresh air is
filtered. |
|

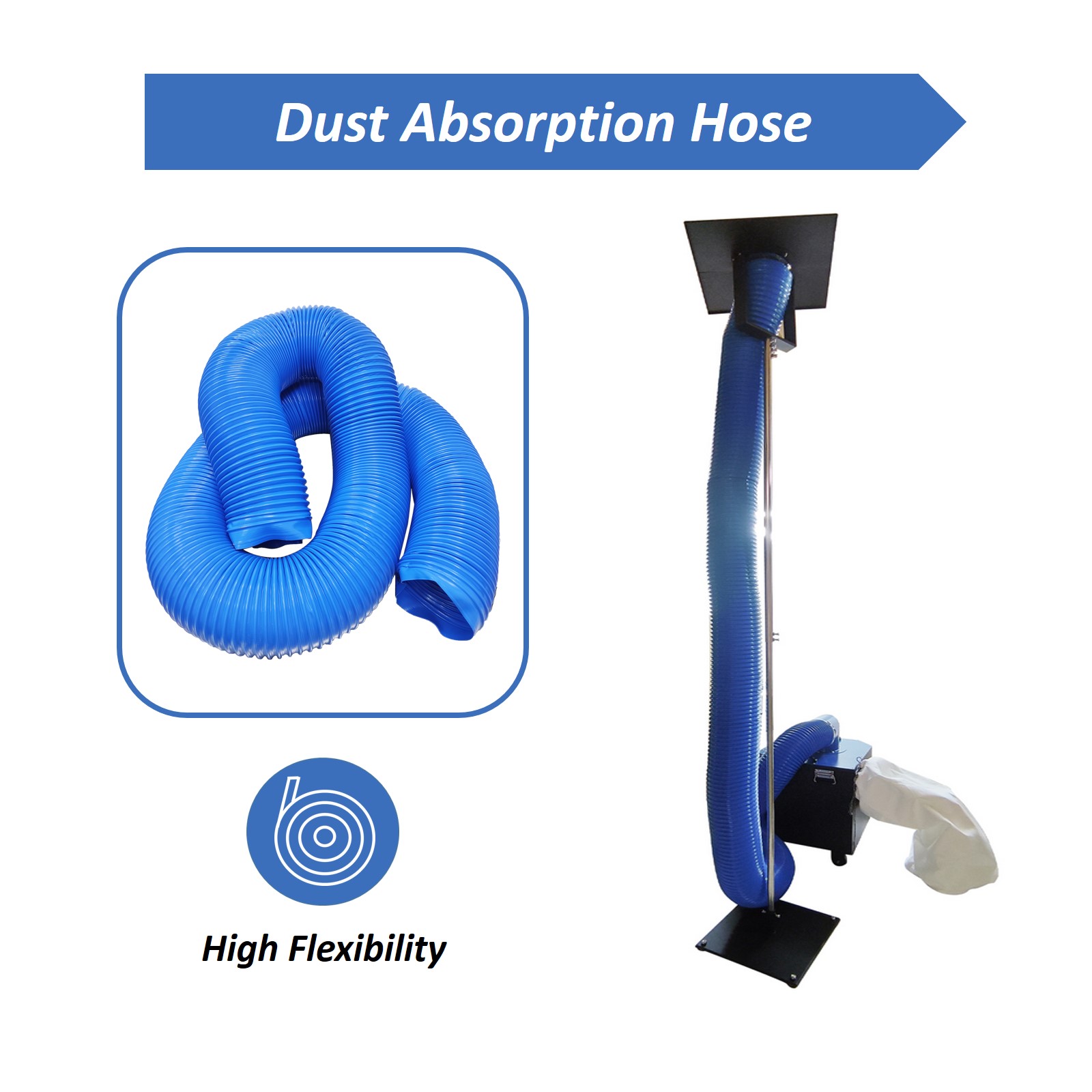

The spring type
dust collection hose has the high flexibility and elasticity and
can be stretched and wound at will to adapt to different ceiling
heights. |
|
|
|
|
|

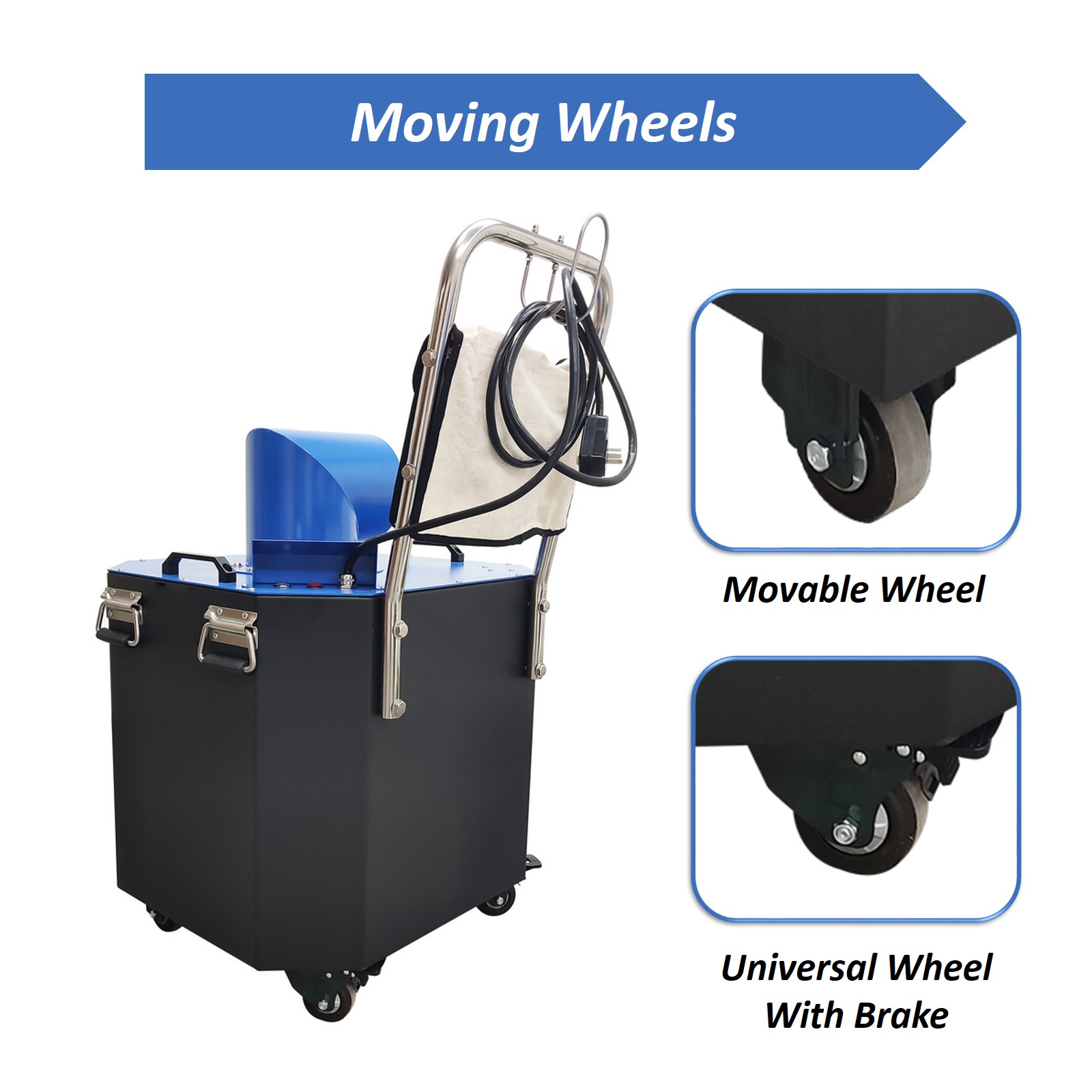

| The
design of universal wheels with brakes is adopted, so that the
dust collector is convenient to move and stop and adapts to
different working environments, and the practicability is
higher. |
|

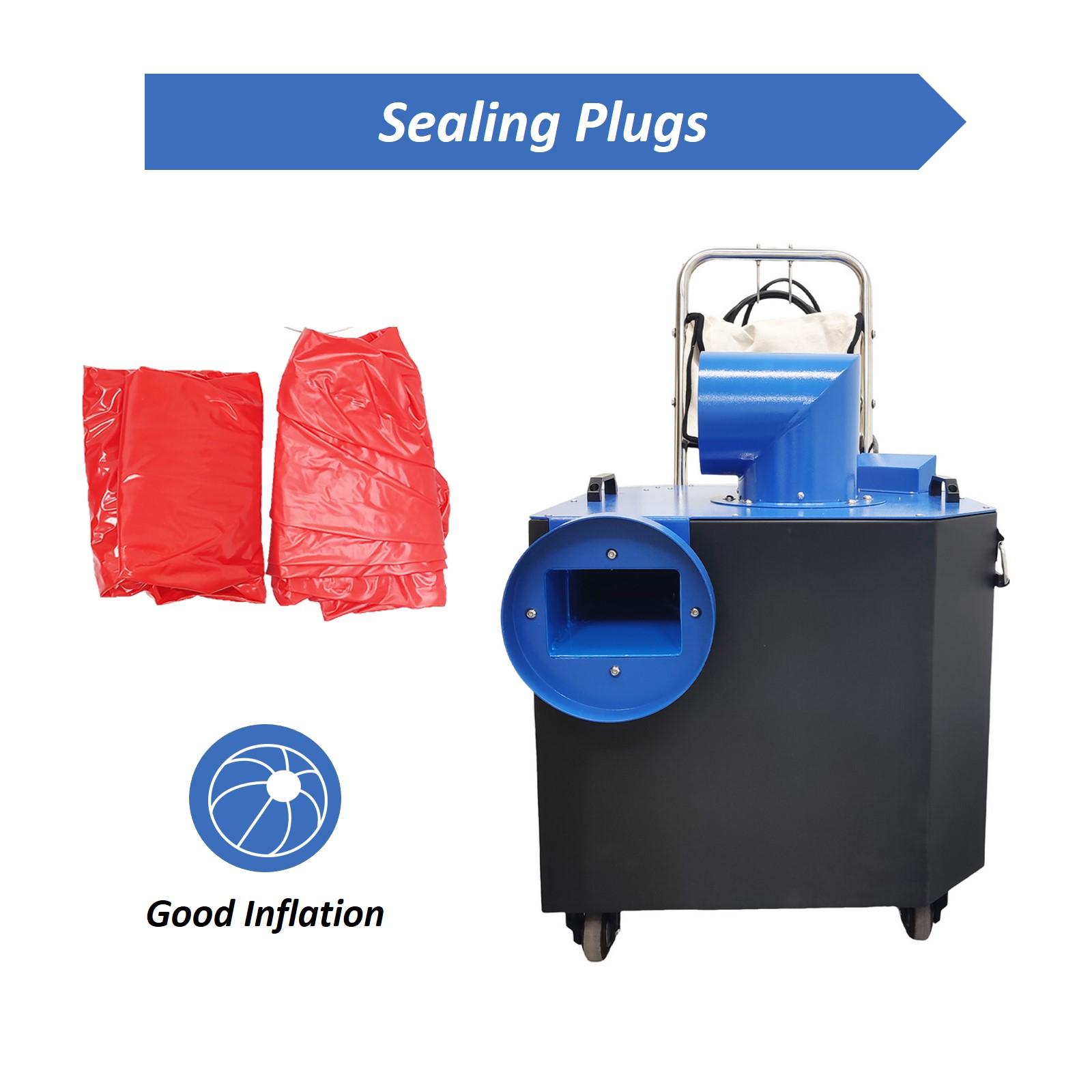

Two sealing plugs
are given as a gift. After the sealing plugs are inflated, the
two ends of the pipeline that needs to be cleaned are blocked by
the sealing plugs, so the dust collection efficiency is
improved. |
|
|

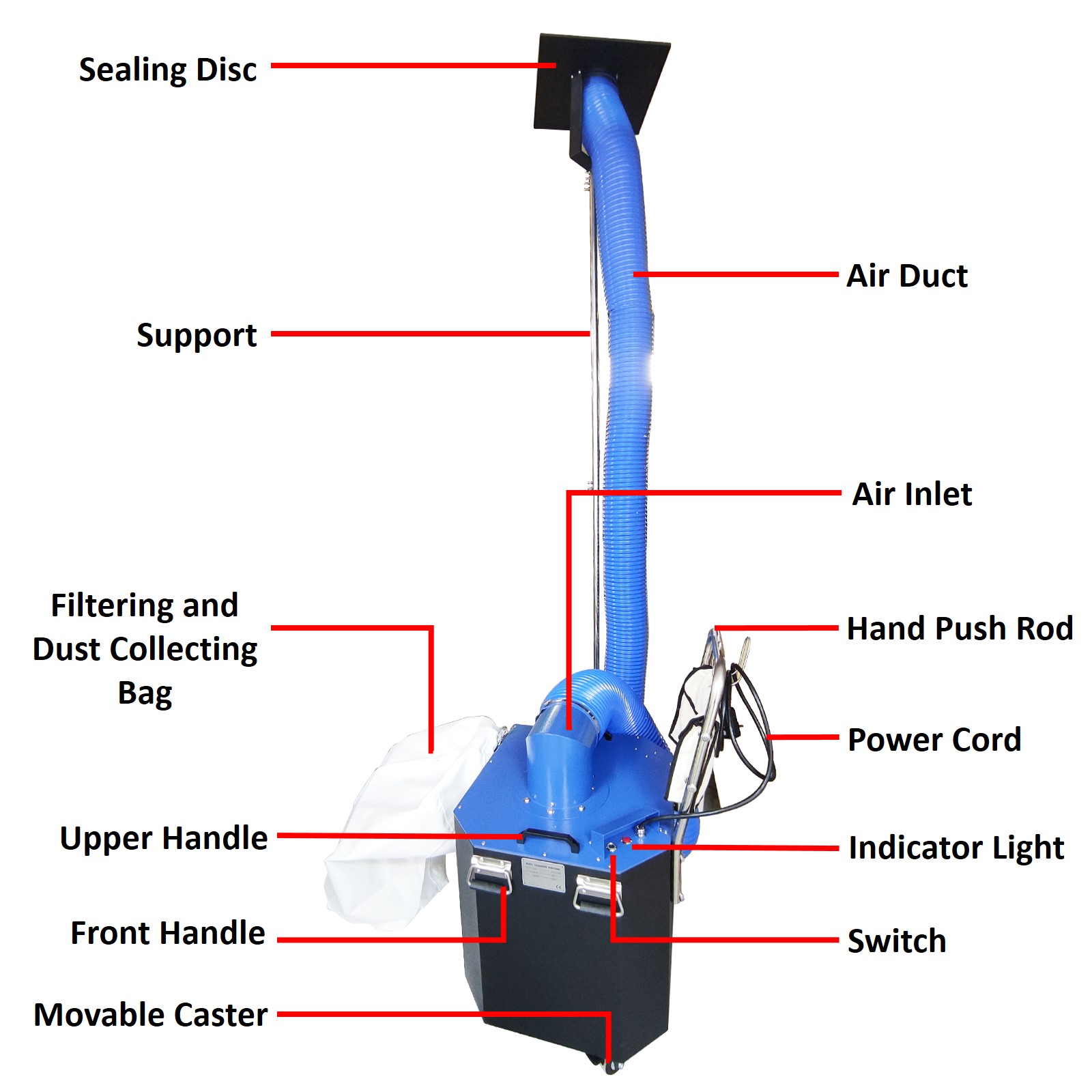

Operation
Method |
1. Inflate the sealing plugs and then
install the sealing plugs at both ends of the pipeline that needs to be
cleaned.
2. Install the two brackets onto the bottom plate and top plate
respectively and tighten the screws.
3. Fix one end of the air duct to the bracket top plate with a pipe
clamp and tighten the pipe clamp screw.
4. Fix the other end of the air duct to the dust absorption opening of
the main machine with a pipe clamp and tighten the pipe clamp screw.
5. Lift the bracket top plate, align it with the pipeline that needs to
be cleaned, and then fix it to the bracket bottom plate.
6. Install the dust collection bag to the dust removal opening and
fasten the dust collection bag opening tightly.
7. After checking and ensuring that there is no looseness in the
connections of all parts, the power can be turned on for operation.
|
|
Application |
|
Dust absorption is conducted while sweeping
is carried out, so that the work efficiency is improved. |

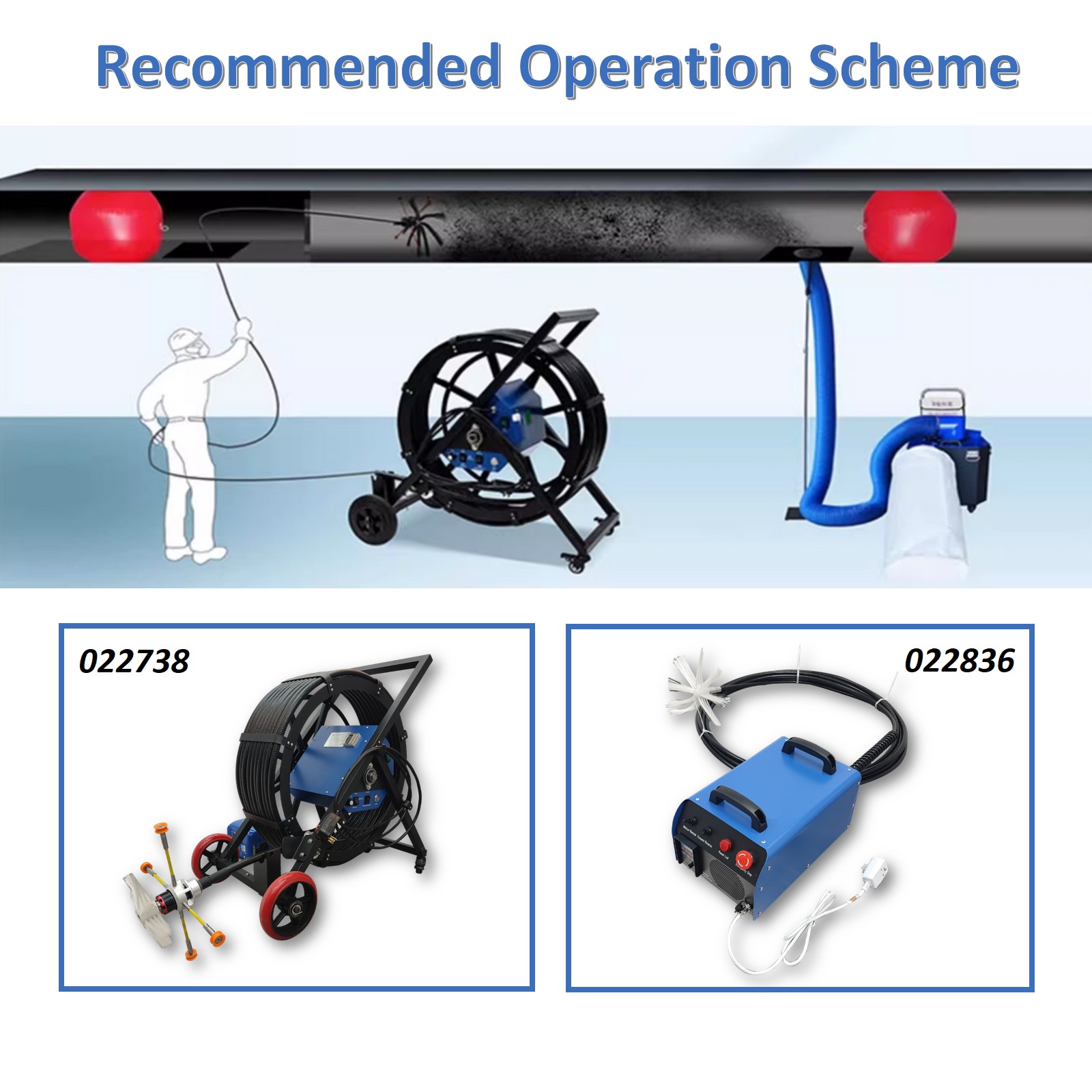

The recommended operating combination
scheme:
022738+022854
022836+022854
|
 |
|

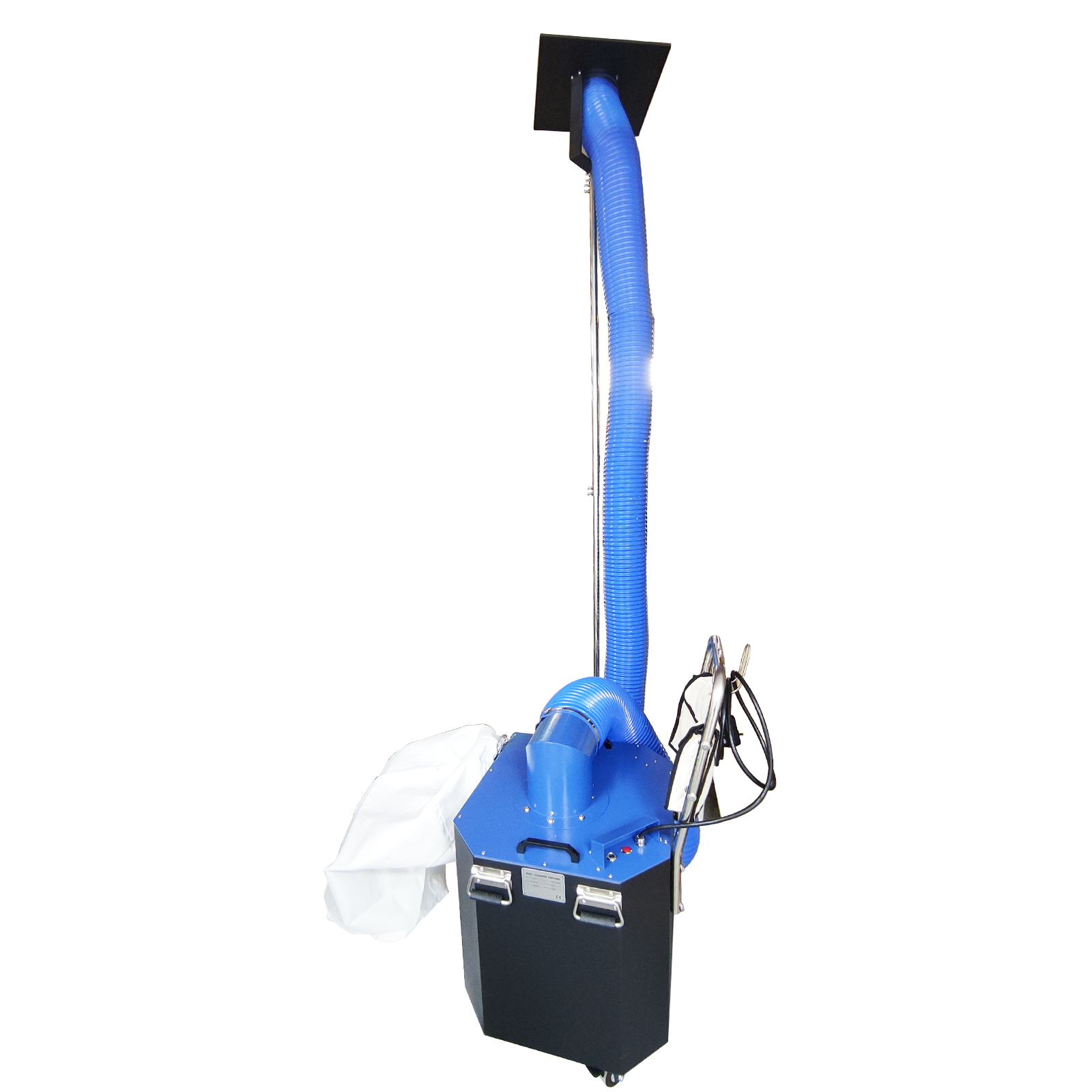

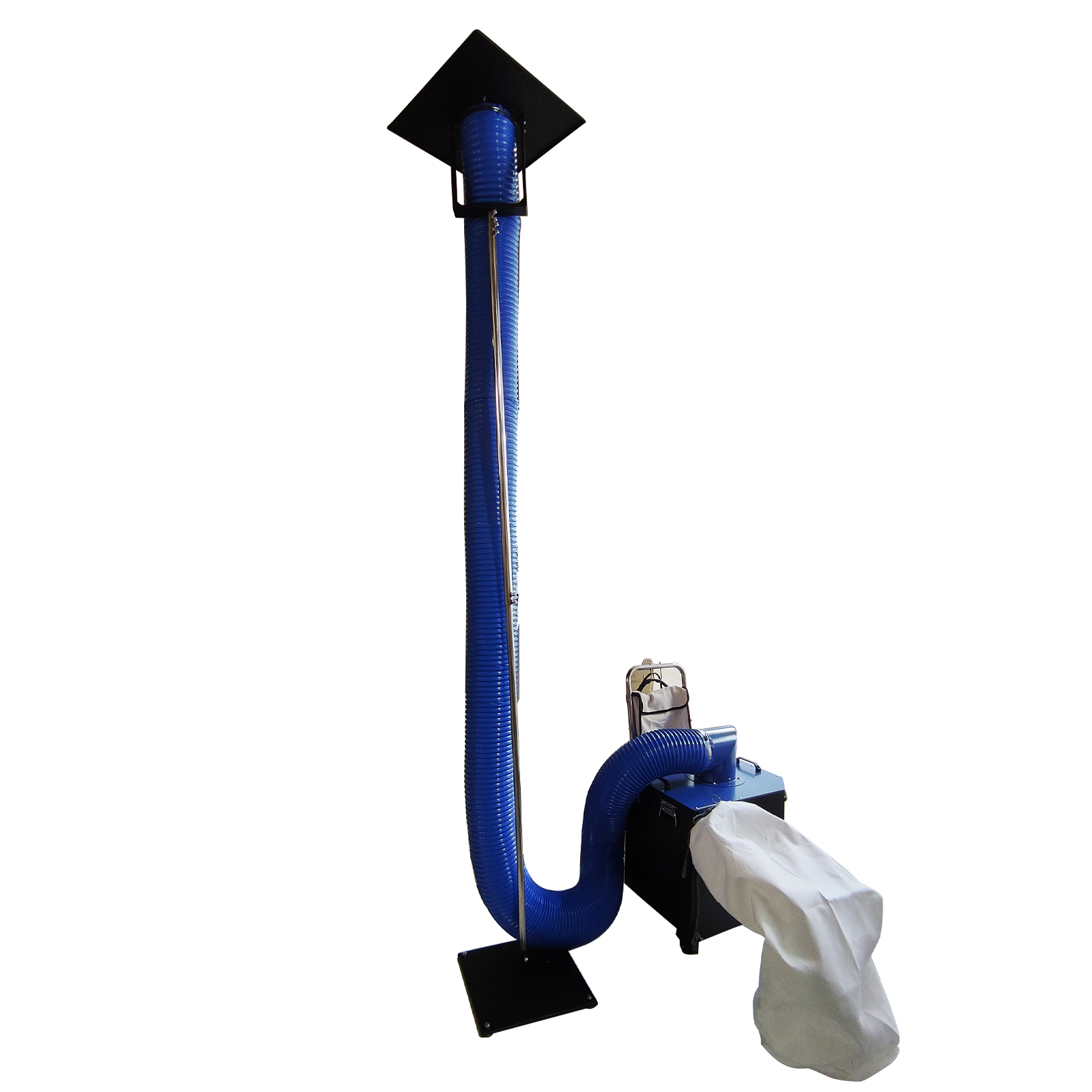

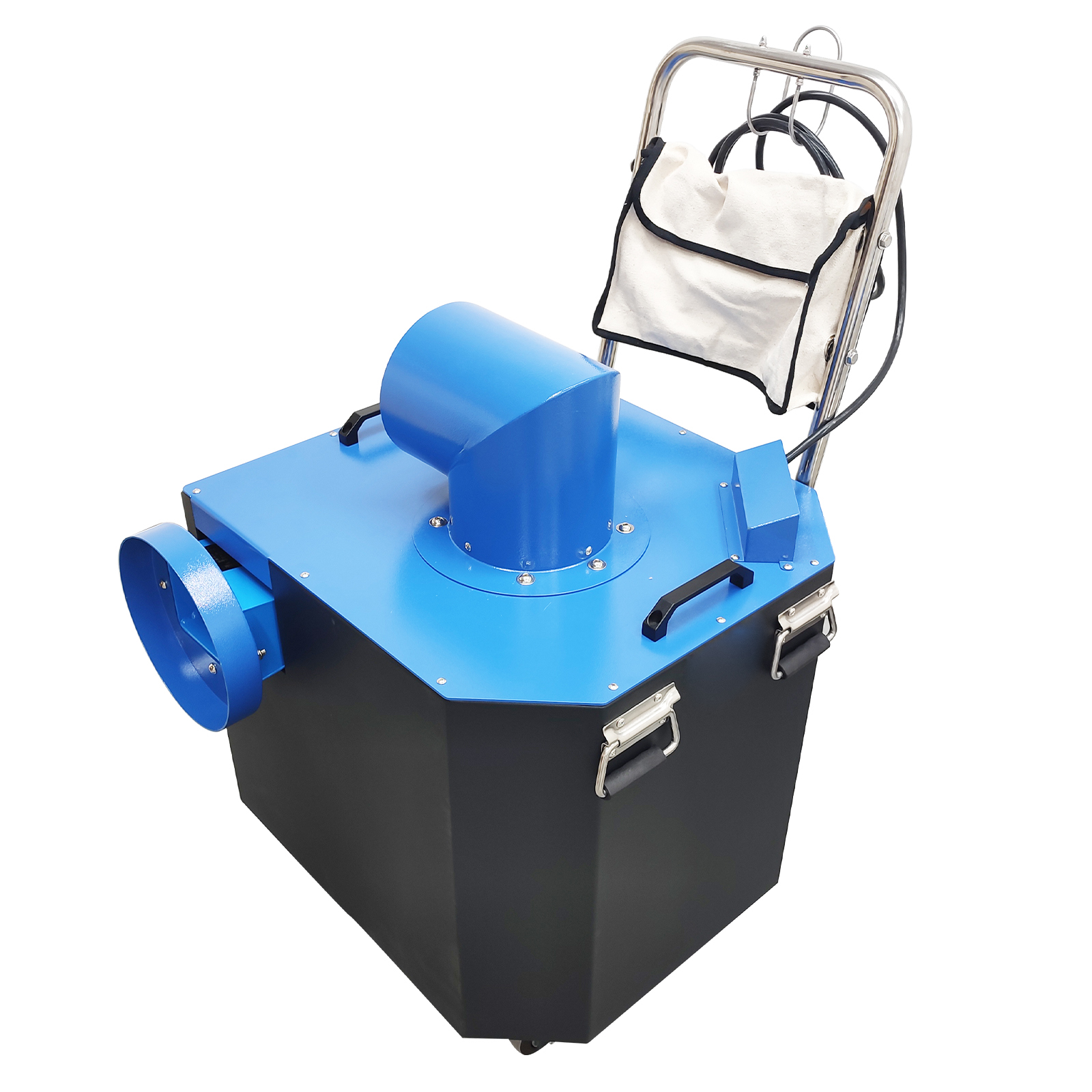

Product
Display |
 |
 |
 |
 |
|
Item Number (022854): 1 x
Industrial Air Duct Dust Collector 220V |
|
|
You can make
order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
