023032:INTBUYING Electric Jacketed Kettle 100L 26.5 Gallon Capacity Stainless Steel 220V
Unit:
set
Price:
3,595.00$
Weight:
223.00kg
QTY:



Similar products

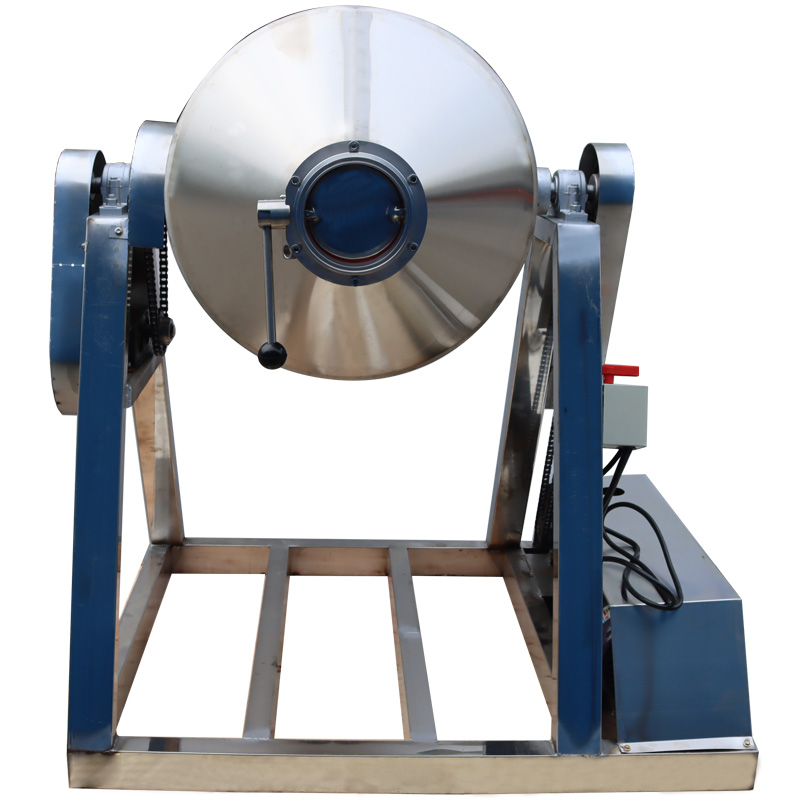

025201:60L Stainless Steel Dry Powder Mixer Metal Metallurgy Powder B

025194:110V 100L Metal Metallurgy Dry Powder Mixer USA

134506:INTBUYING Milkshake Maker Smoothie Drink Mixer Machine Double Head with 2 Cups

020206:INTBUYING Commercial Fruit Ice Cream Machine Frozen Milkshake Yogurt Fruit Blender Mixer for Restaurant Ice Cream Shop

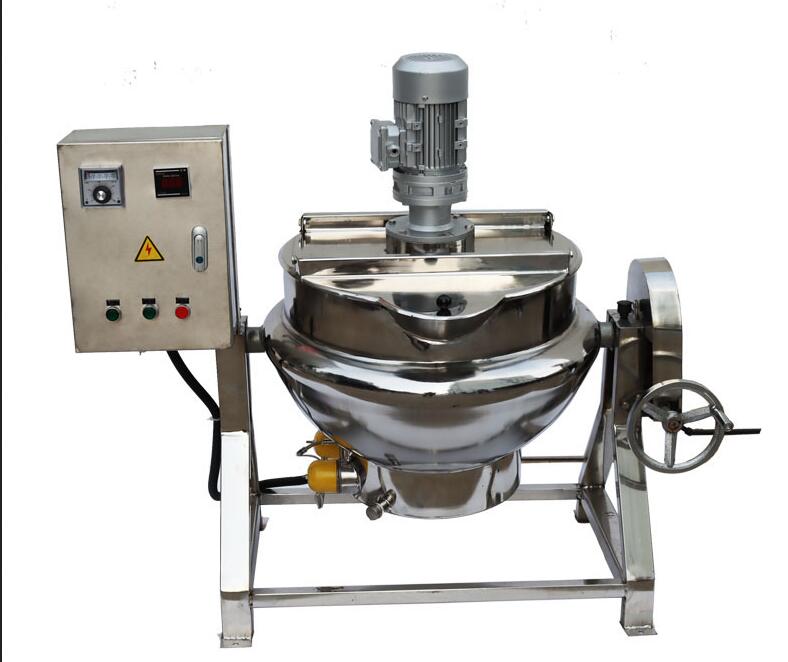

023453:American style sandwich pot (50L, 13.2gal, with stirring and edge scraping, tilting type, 220V, three-phase, 60Hz)

新建网页 2 新建网页 1 新建网页 1

    Jacketed Kettel 100L 26.5Gallon 220V 60HZ 3PH

Specification:

Voltage: 220V 60HZ 3 PHASE
Motor power: 1.1KW
Volume: 100L 26.5Gallon
Maximum working temperature: Interior <180 degrees; Sandwich <250 degrees
Maximum working pressure: atmospheric pressure

Instructions:

1 Before using the machine, please check the hot oil level and make sure that has reached the specified oil level.

2 Clean the pot and put the material into the pot.

3 Before starting the machine, please open the exhaust valve.

4 Turn on the gate and close the filling valve. You can let the body of the pot be tilted and discharge the material by tilting the sandwich pot and turning the hand wheel.

Note:Due to the different batches of motors and accessories, the color will change a little.


Schematic diagram of machine general wiring:
http://topseller365.com/data/prd/023/032/%E6%8E%A5%E7%BA%BF.jpg
Item Included   (023032):
1*Jacketed Kettel 100L 220V 60Hz
