| Hand-push Type Rotary Sand Screening Machine |
| The hand-push type rotary sand screening machine is a lightweight and highly efficient sand and gravel screening device, and is suitable for scenarios such as construction, road construction and sand field operations. This machine adopts a human-driven design and is equipped with a rotary screening device, which can quickly separate sand and gravel materials of different particle sizes, improve the construction efficiency, and reduce the labor intensity of manual screening. |
 |
Features:
1. Compact structure, light weight and easy to move.
2. High screening efficiency and good screening effect.
3. Simple operation and convenient maintenance.
4. Strong durability and adaptability to various complex working conditions. |
Parameter:

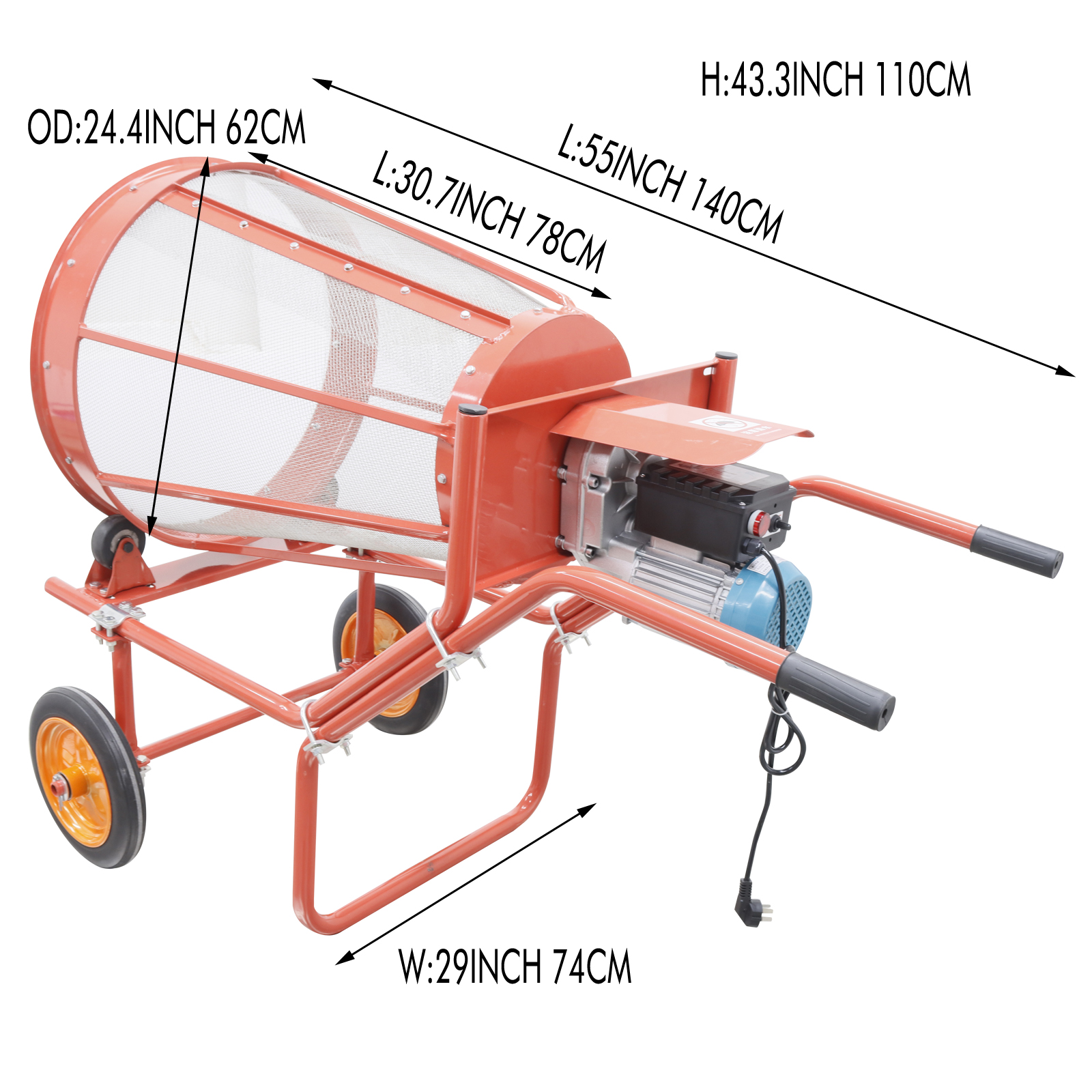

Screen cylinder diameter: 24.4inch/62cm, 13.8inch/35cm
Screen cylinder length: 30.3inch/77cm
Screen mesh diameter: 0.2*0.2 inch/5*5mm
Voltage: 220V 1PH
Power: 2500W
Wheel diameter: 11.8 inch/30cm
Moving style: Hand-push type
Maximum single load capacity:20kg |
| Structural composition： |
 |

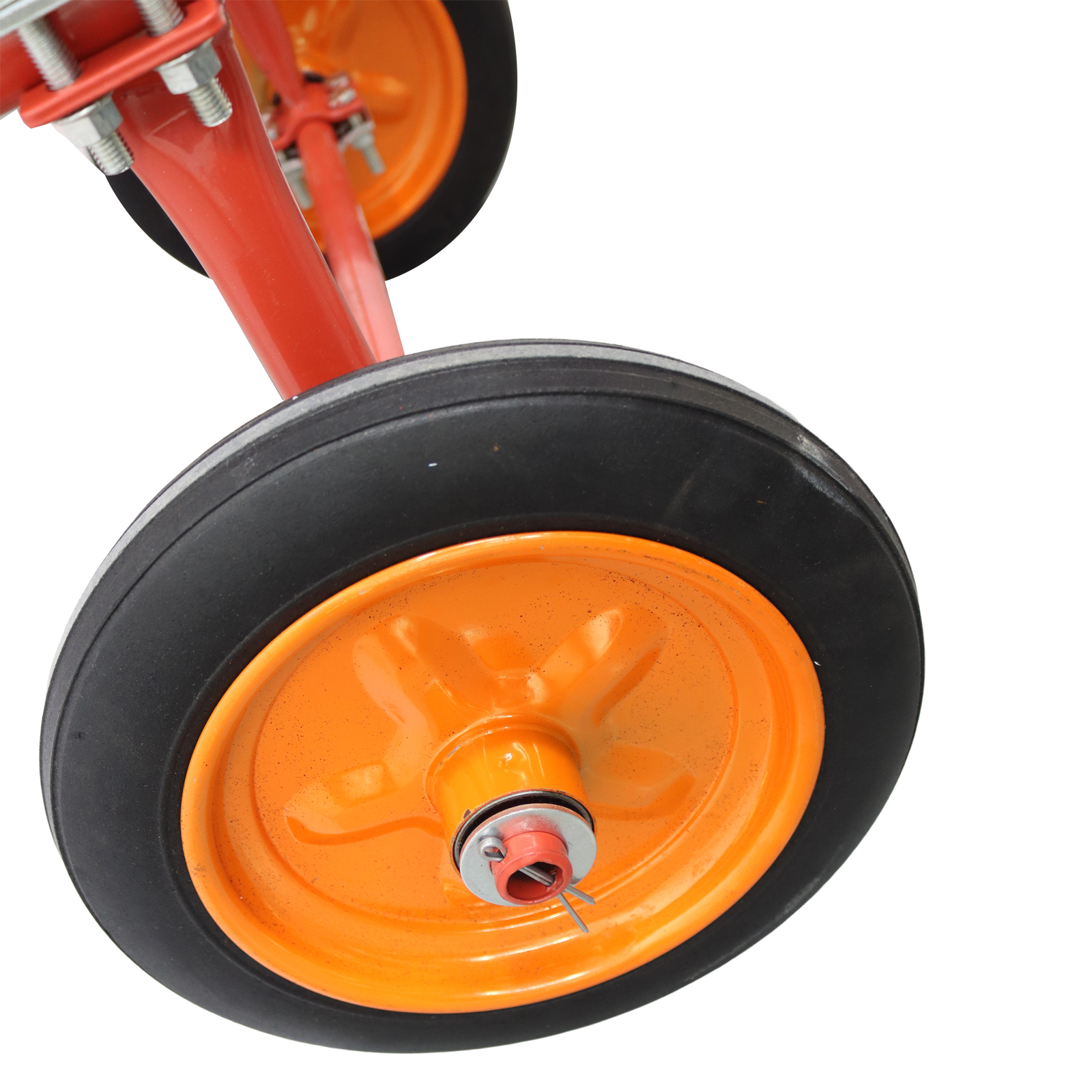

Wheel: Solid rubber wheel, Diameter: 11.8 inch/30cm. |

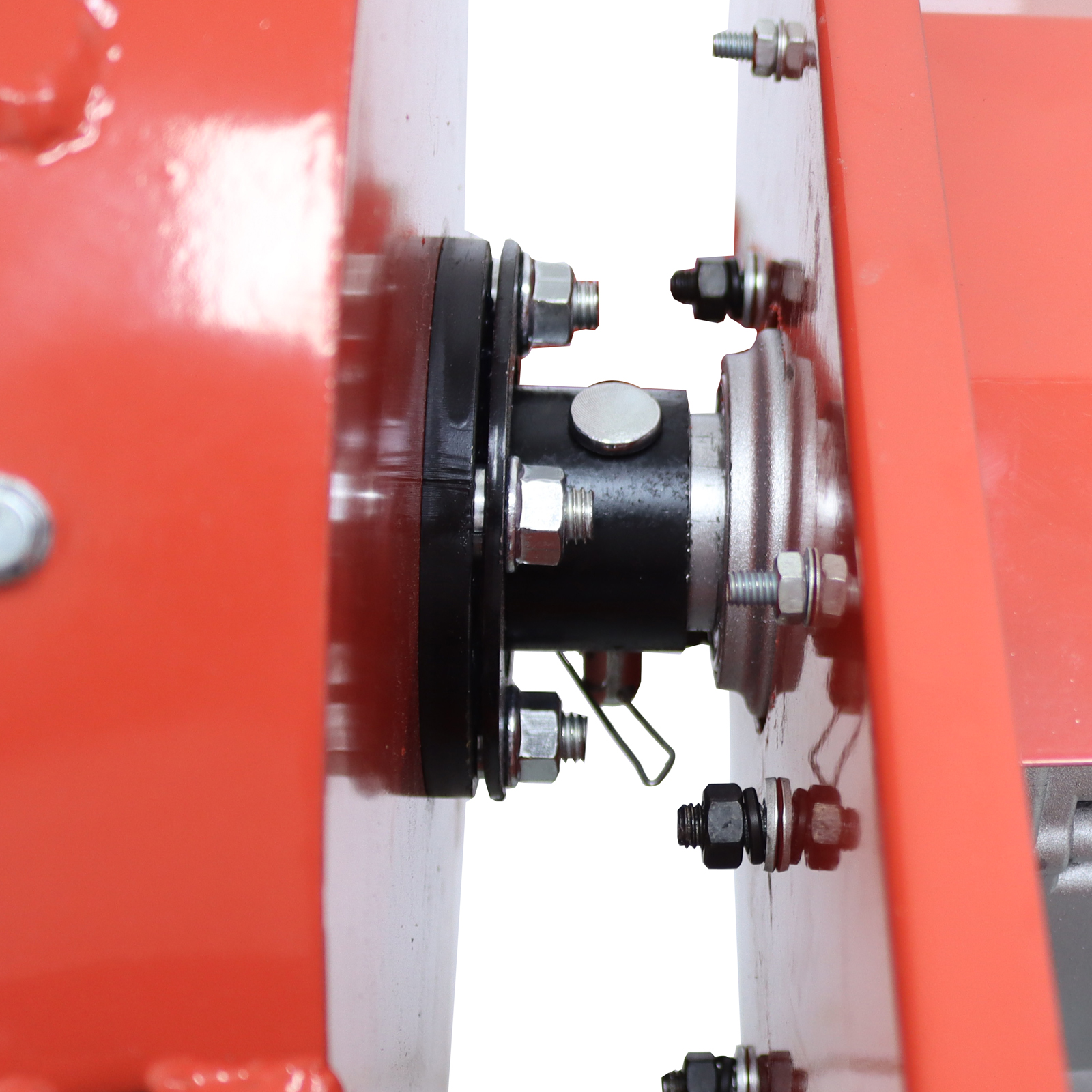

| Motor shaft connecting part: The space at the connection point of this part is relatively small. When installing, be sure to insert the motor shaft and then insert the pin. |
 |
 |

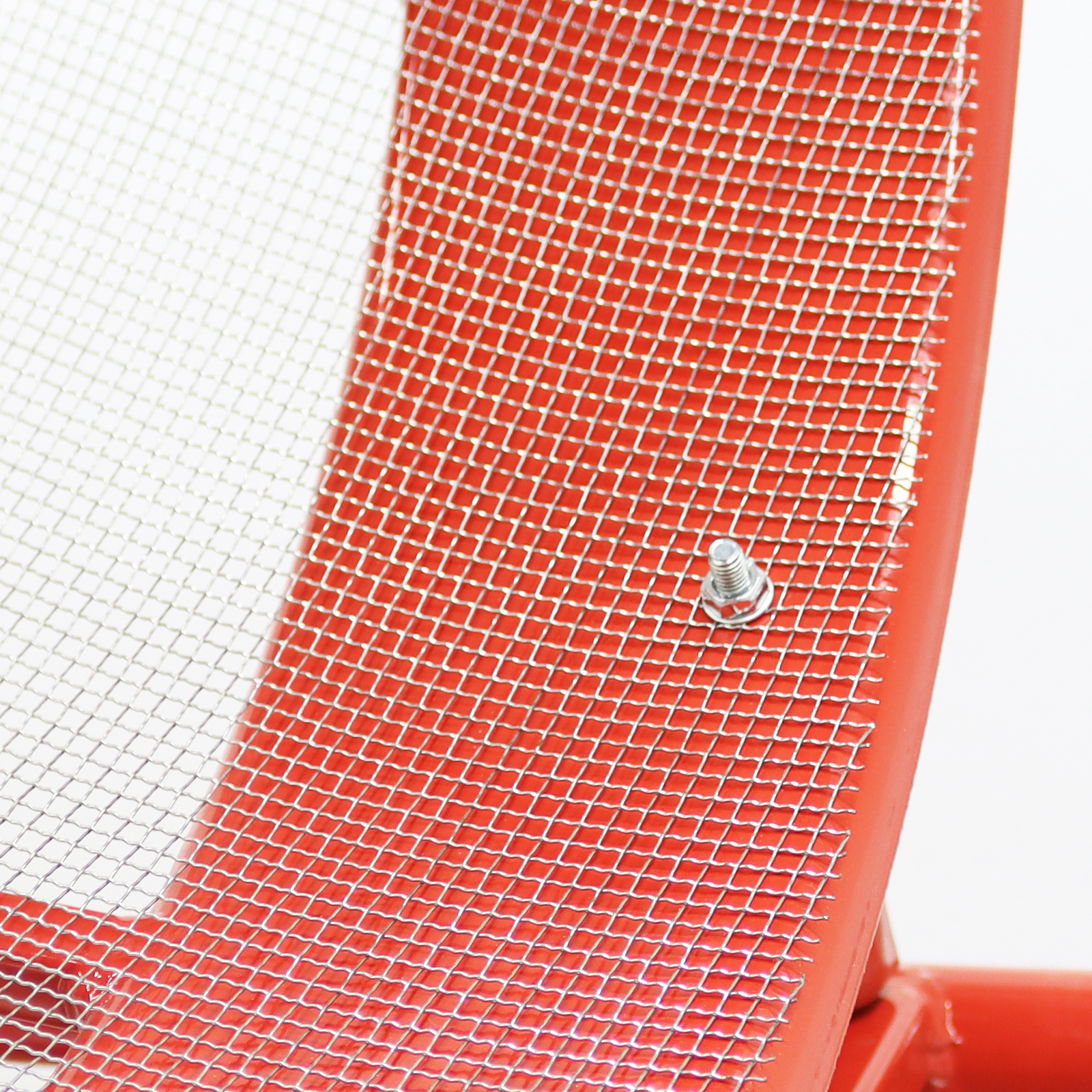

Filter screen: 5*5MM hole specification. Gloves need to be worn during installation.
Regularly check whether the mesh surface is damaged or deformed to prevent sand leakage or incomplete screening.
Avoid pouring in too much sand at one time to prevent the screen from being overloaded and damaged. |

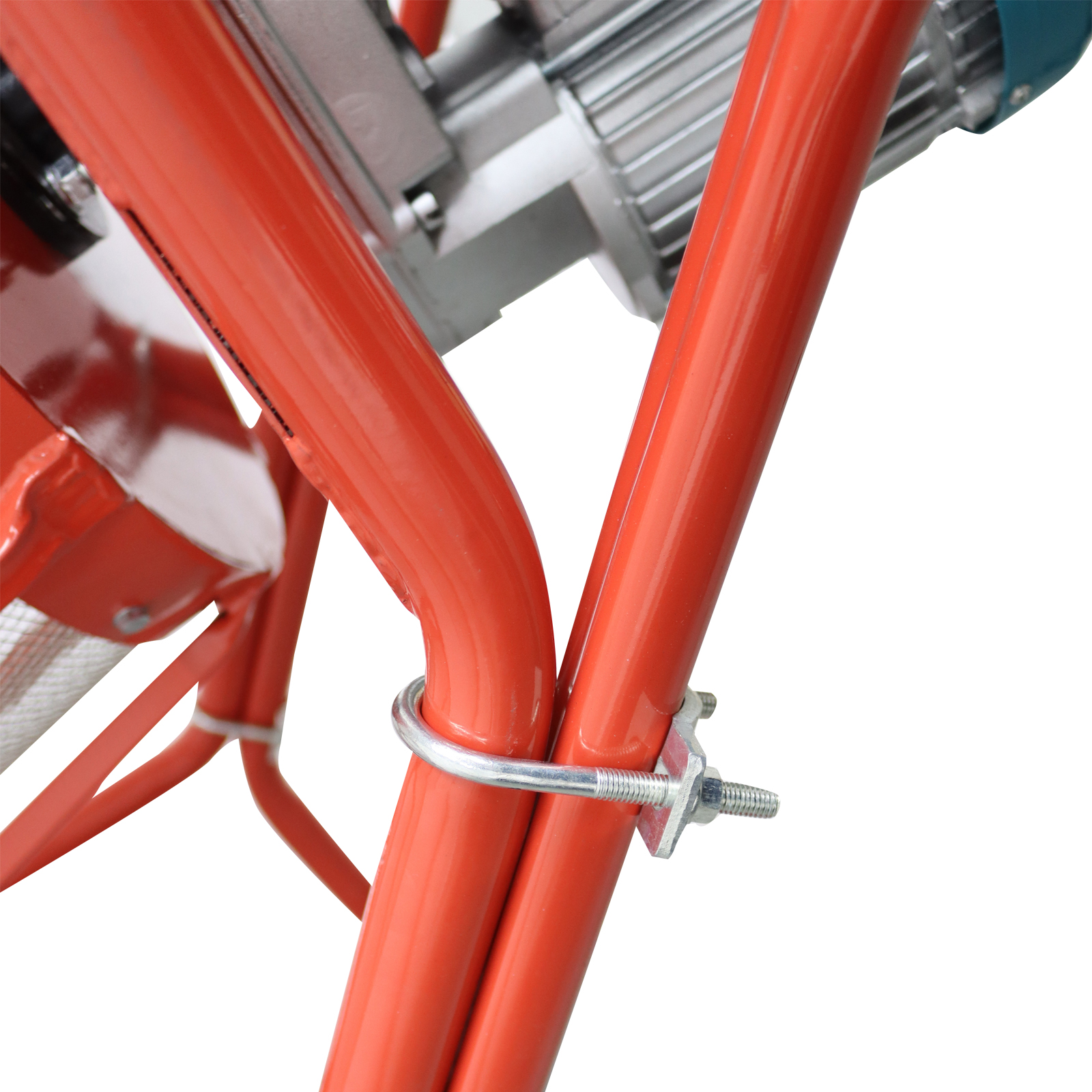

| The middle of the rear leg part needs to be fixed symmetrically, otherwise the center of gravity of the machine will be unstable. |
 |
 |

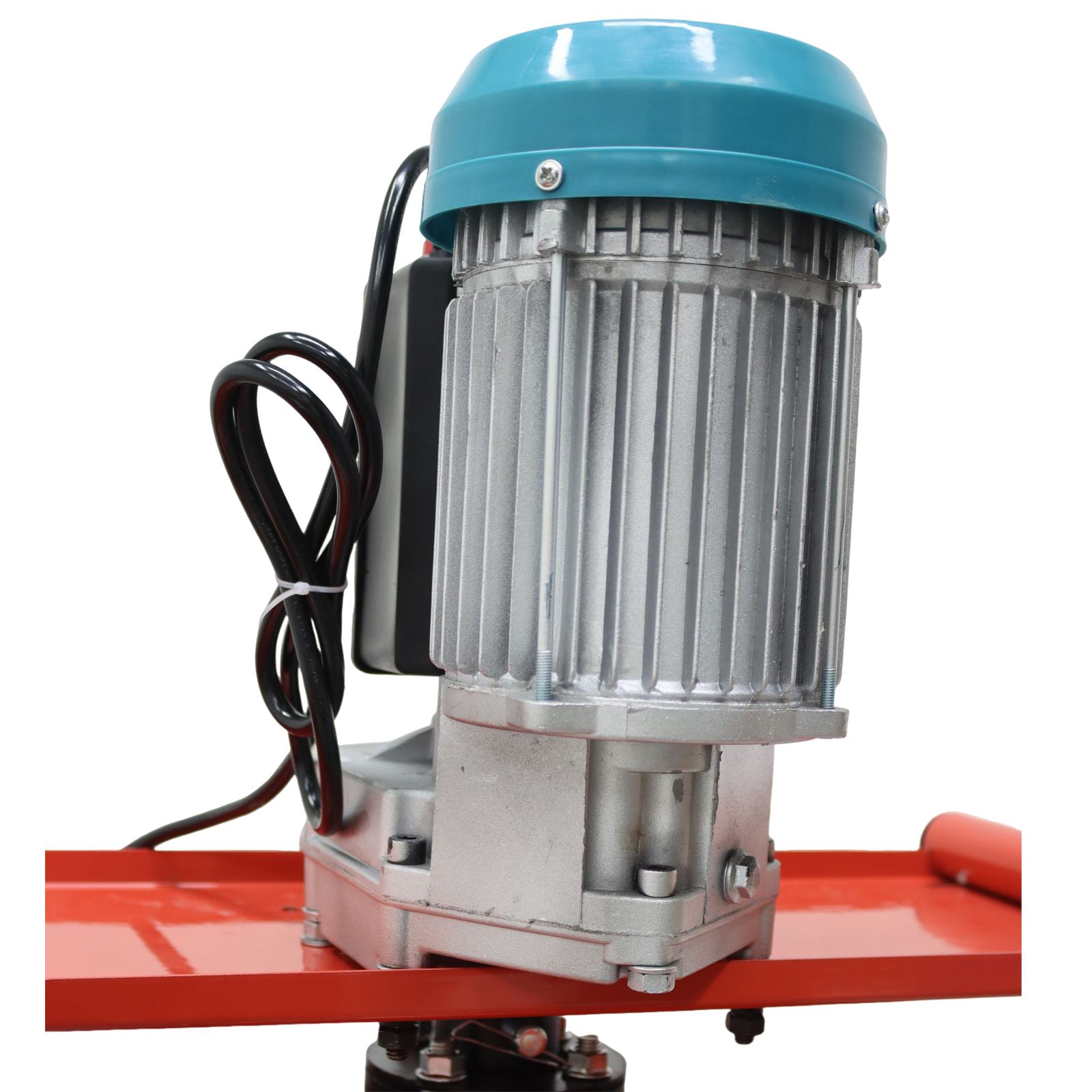

Motor: 220V 2500W |
How to use :
1. Assemble the machine according to the instruction manual, ensure the machine is stable, and especially pay attention to the installation of the rear position.
2. Place the hand cart on a flat ground.
3. Connect the machine to the power supply with the input of 220V.
4. Use tools such as a shovel to pour the to-be-screened sand and gravel into the feed inlet of the rolling screen evenly and slowly. Avoid pouring too much sand and gravel at one time (the single feeding amount should not exceed 2/3 of the screen's load capacity) to prevent the sand and gravel from piling up and blocking the screen, which may cause the roller to get stuck or the motor to be overloaded.
5. The rolling screen rotates the roller to make the fine materials (sand that meets the screen hole size requirement) pass through the gaps of the screen and enter the discharge area below, and the coarse materials (impurities larger than the screen hole size) will be discharged from the screen opening along with the rotation of the roller. It is necessary to remove the coarse materials timely to prevent the coarse materials from piling up and being mixed with the fine materials. During the operation, if it is necessary to move the equipment, firstly, stop feeding, wait until all the sand and gravel in the screen are discharged, then unlock the wheels and push the machine slowly. It is prohibited to forcibly move the equipment while it is running.
6. After the operation, turn off the power supply, and clean away the dust, sand and gravel on the equipment frame and the receiving hopper to prevent accumulation and corrosion of the equipment.
|
Warning:
-Read carefully and understand all INSTRUCTIONS before operating the machine. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
-Always keep children away from this machine, PROHIBIT children from operating the machine.
-Never touch the RUNNNING Parts or insert hard ware into the machine.
-Always unplug the machine when assembling or disassembling the unit.
-Press the On/Off switch once to turn on or turn off the machine. Pressing the buttons for multiple times may damage the machine.
-Note that the motor must not get damp.
-During operation, wear anti-slip gloves and a dust mask to prevent hands from being scratched by sand and gravel and to avoid dust inhalation. For electric models, ensure the power supply voltage is matched with the equipment requirements. Never operate the power switch with wet hands to avoid electric shock.
- While the equipment is running, it is forbidden to put hands or tools into the rolling screen to prevent entanglement accidents.
-The equipment has a limited load capacity. Do not screen heavy objects (such as large stones, concrete blocks) that exceed the screen's load-bearing capacity, so as to prevent screen deformation or roller shaft breakage. |
Item included:Hand-push Type Rotary Sand Screening Machine 220V*1
Item Number: 134173 |
