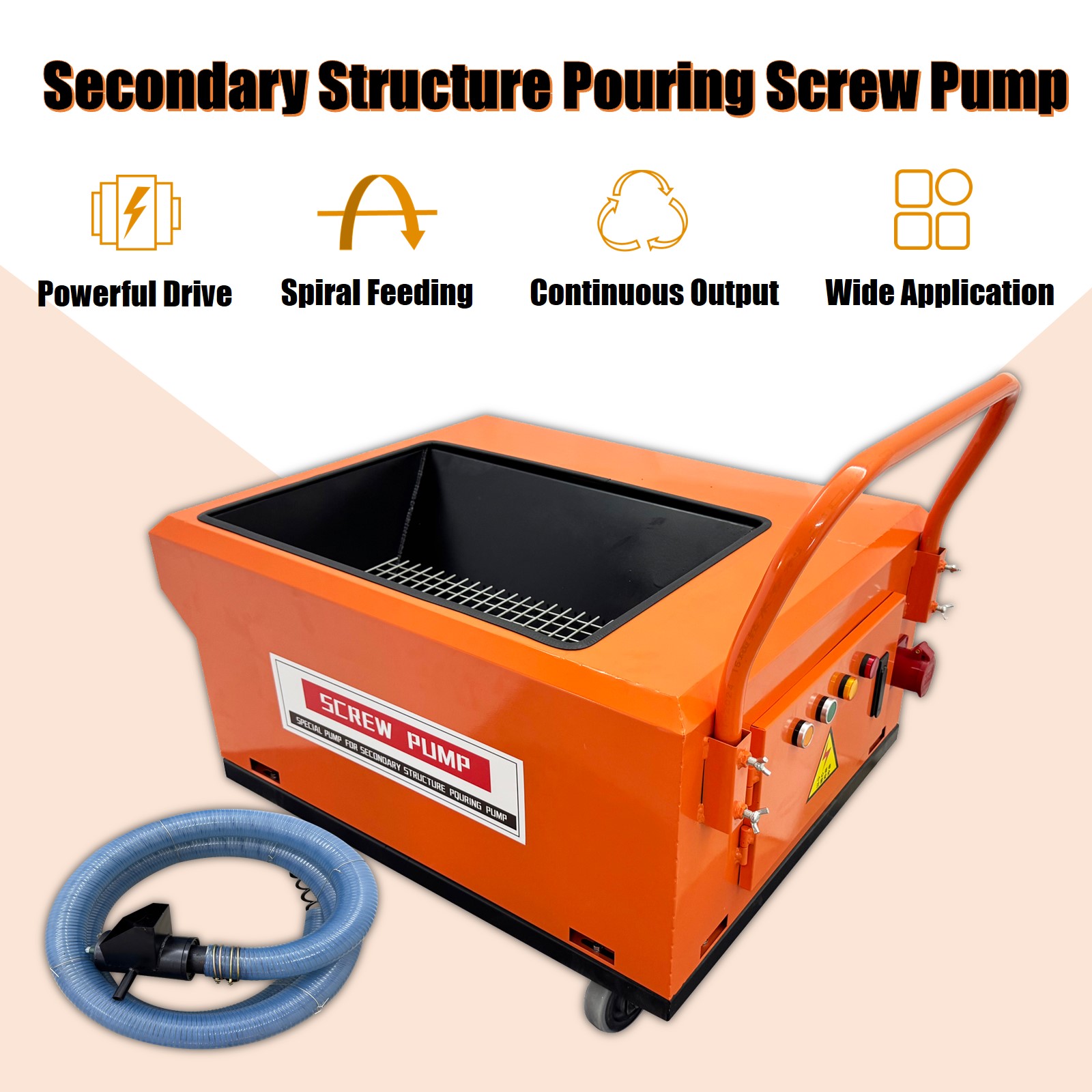

Small Concrete Pump Secondary Structure Pouring Machine Loading Machine 220V 3PH 5.5KW

Product Overview
The secondary structure pouring machine is a professional multifunctional screw pump specifically designed to solve the problems that during secondary structure construction, the work is laborious, and the production efficiency is low. The machine has the advantages of being small in size, easy to operate, convenient to move and high in efficiency, reducing the labor intensity of workers and shortening the construction period. It can be flexibly used for construction in floors and can get close to beams and columns to conduct pouring operation. The screw pump has the wide application range and is suitable for engineering construction, house reconstruction, pavement hardening, high-rise building and so on.
Product Parameters
Voltage 220V Three-phase electricity (with the earth wire)
Motor power 5.5KW
Delivery capacity 4-5m³/h(141.26-176.57 ft³/h)
Allowable particle size ≤2mm
Hose length 5m (16.4ft)

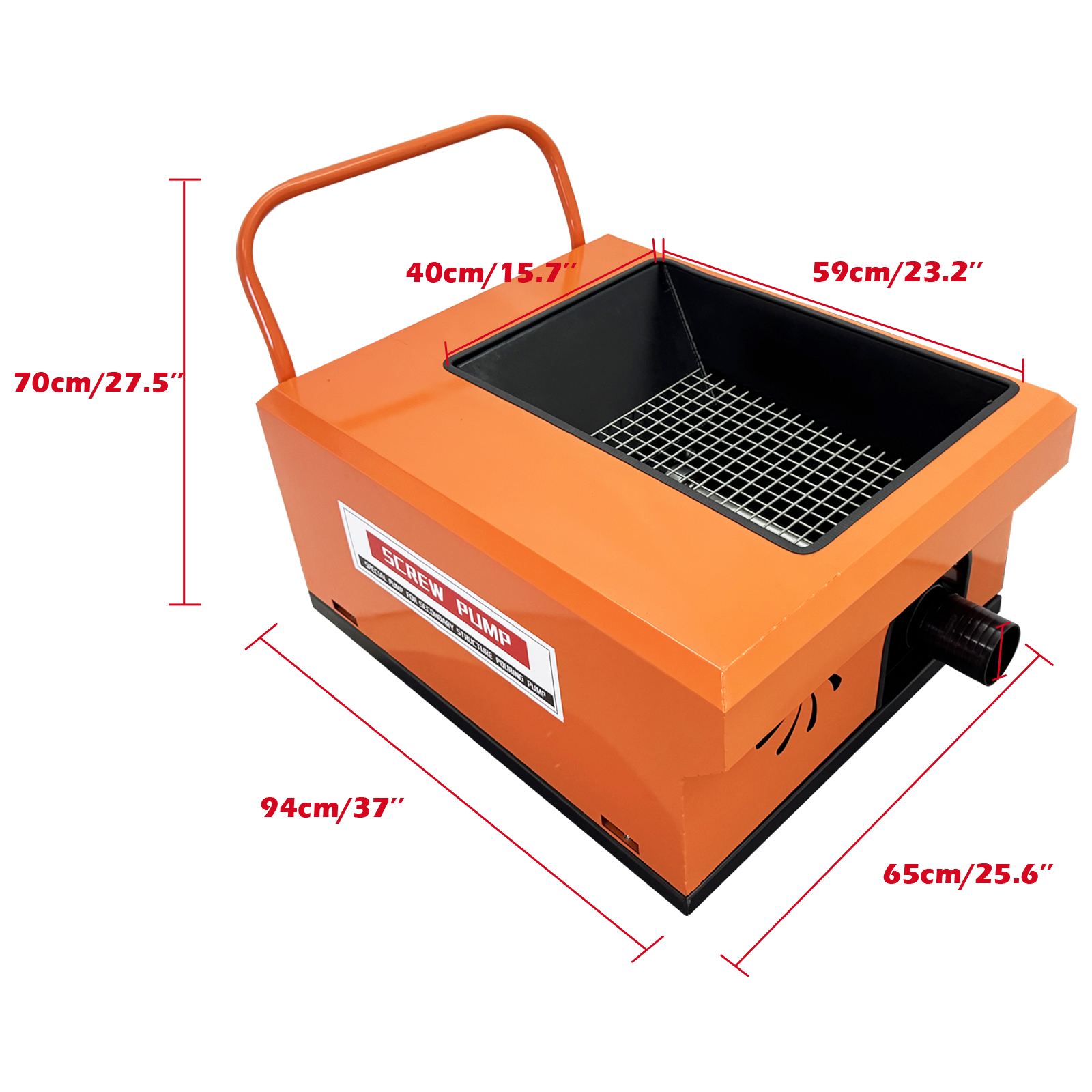

Product size 65x94x70cm (25.6x37x27.5 inches)
Net weight 128kg (282.2LBS)
Attention

1. The auger often gets stuck usually because the troughed belt is loose, and the troughed belt needs to be adjusted to the tensioned level.

2. The power supply must be reliably grounded and is equipped with a leakage protection device. When lime pouring is conducted, please note that the electrical box cannot be wet or be operated with wet hands.

3. Reverse rotation is strictly prohibited as it may cause damage to the spiral part.

4. Do not touch the running parts during operation. Do not put the hands into the machine.

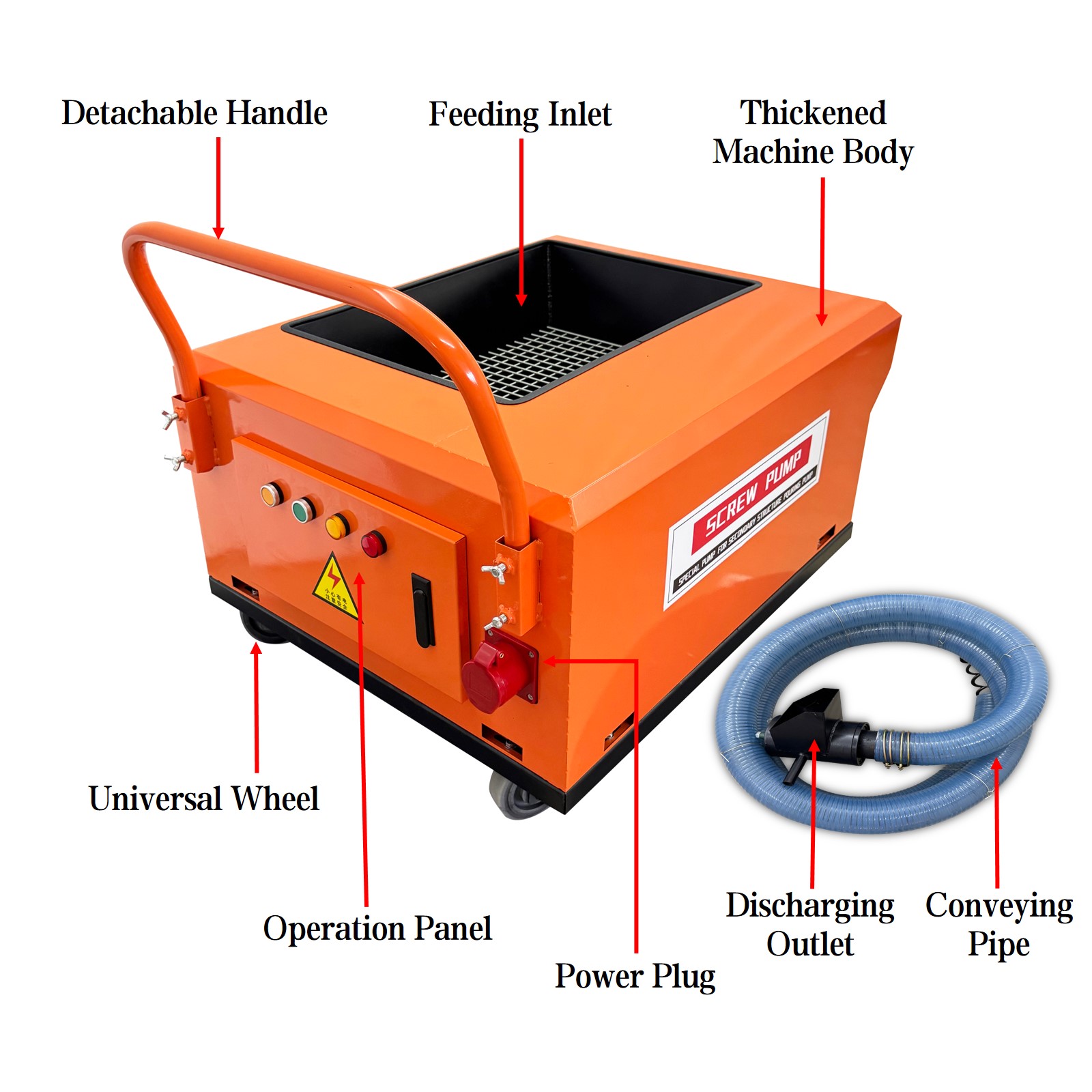

Product Features

1. The screw pump is made of high-quality thickened materials, making the machine body firm and durable and effectively prolonging the service life.

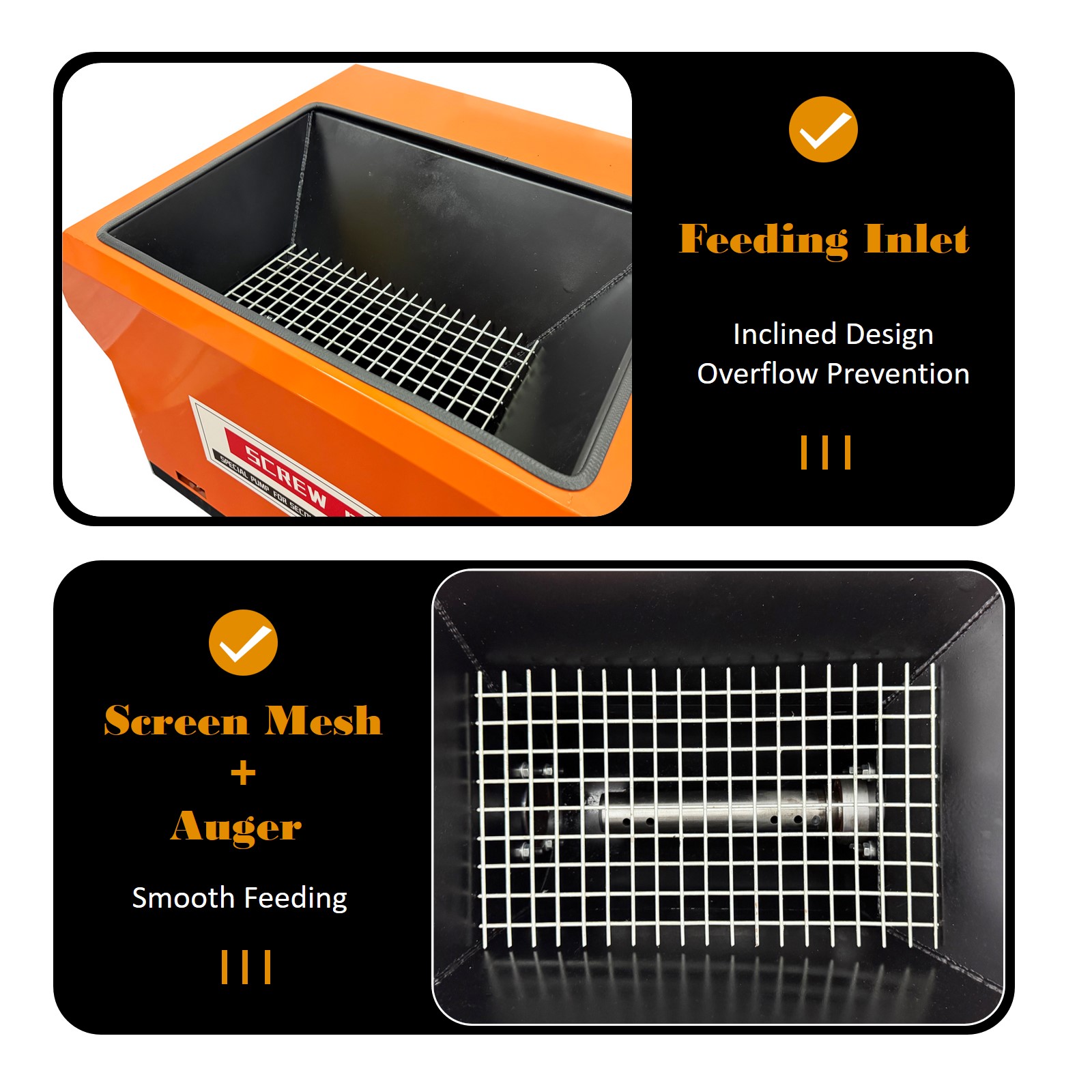

2. The enlarged feeding inlet is of an inclined structure, has a large feeding capacity and effectively prevents concrete from overflowing in the working process.

3. The detachable screen mesh makes feeding uniform and smooth and well avoids blockage of the feeding system. The auger is designed for conveying raw materials to the pipe quickly and efficiently, and is resistant to wear and long in service life.

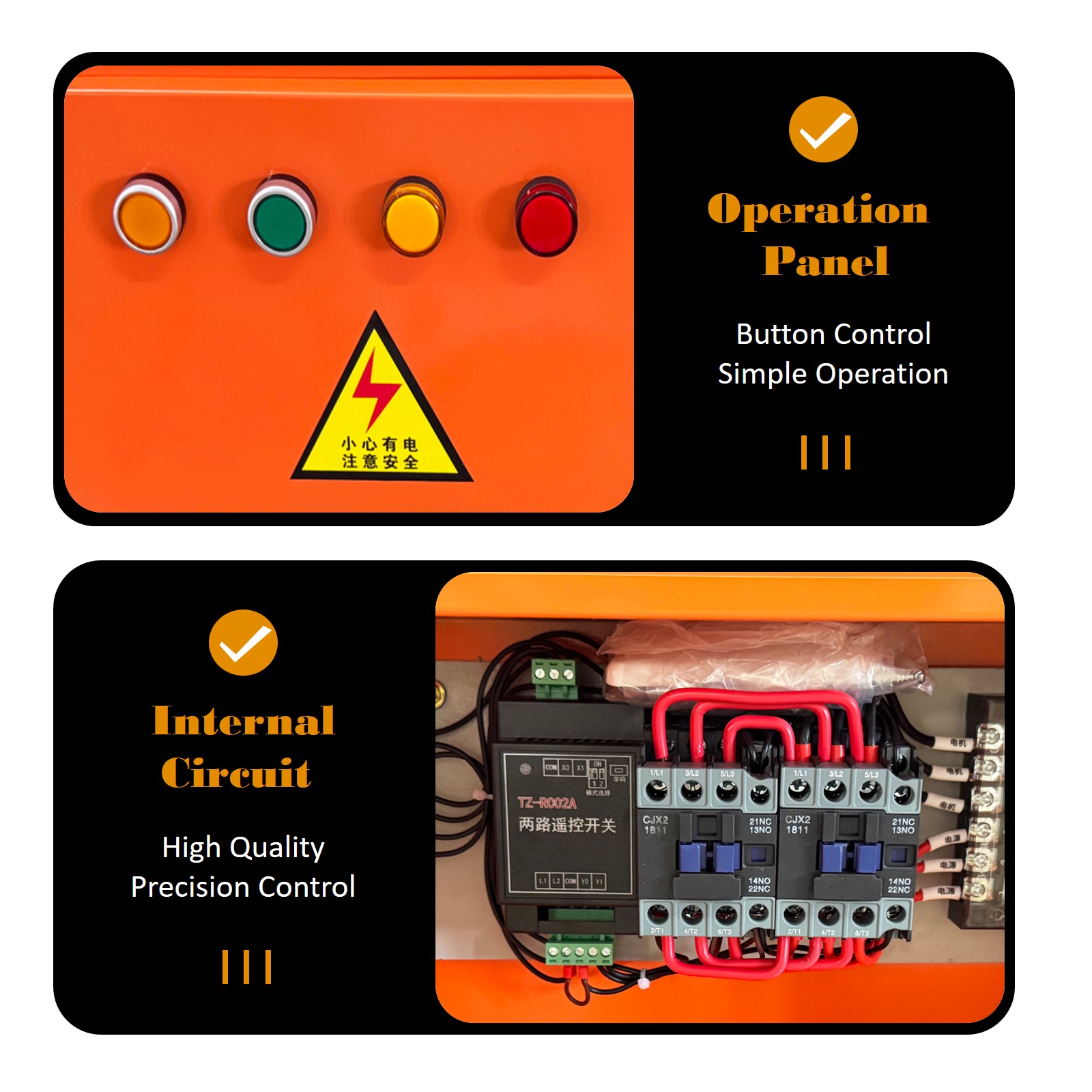

4. The control panel is simple in structure and easy to control, the machine can be effectively controlled to run as required, and the operating difficulty is obviously reduced.

5. The high-performance controller is adopted to reliable control over the machine, ensuring that the screw pump can operate stably and continuously.

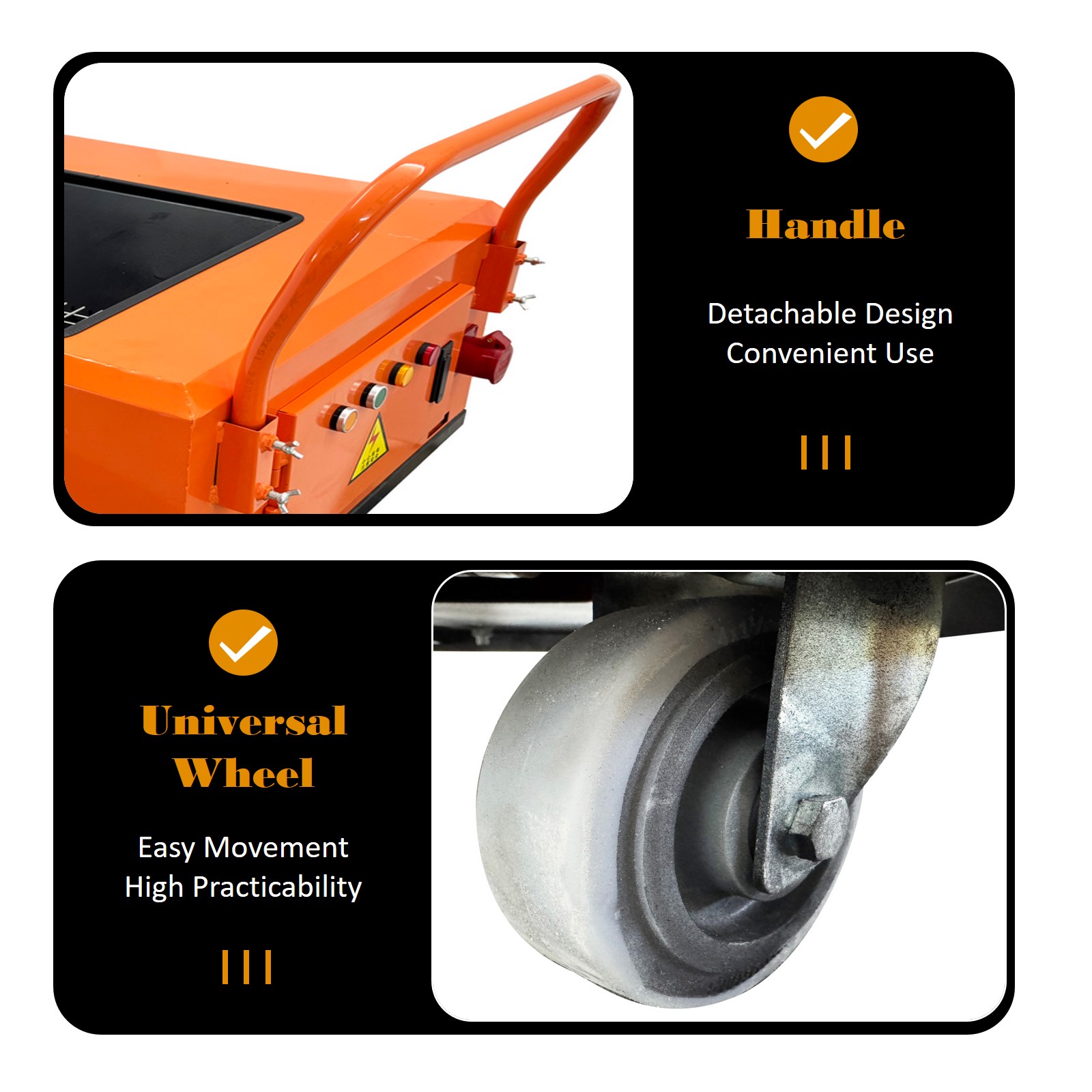

6. The handle is of a detachable structure and can be easily adjusted as needed, meeting different height requirements of operators and facilitating movement of the screw pump.

7. The screw pump can be conveniently moved to different working environments through the universal wheels, the practicability is higher, and the wheels are resistant to wear and long in service life.

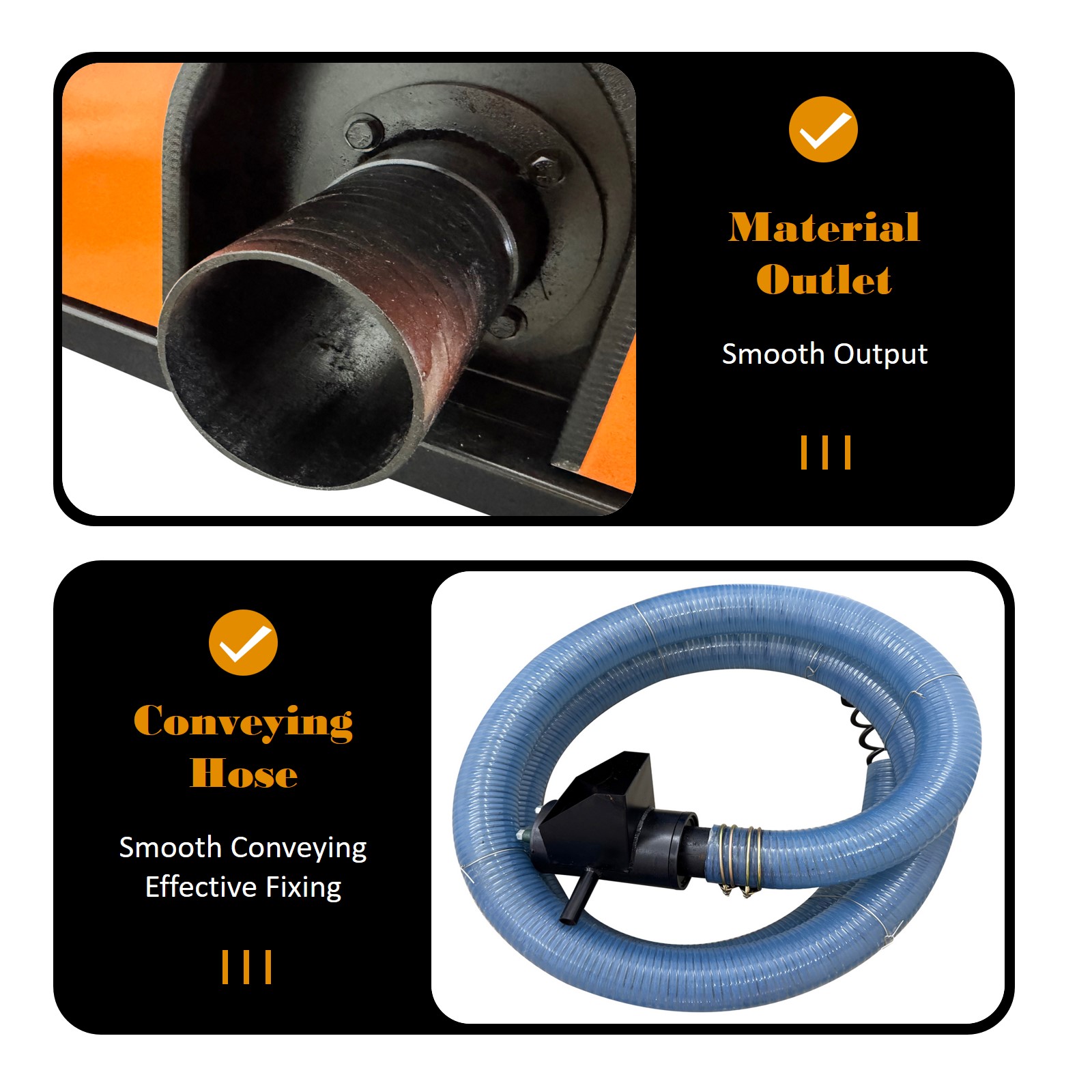

8. The enlarged and reinforced material outlet is compact in structure, can smoothly convey the raw materials to the pipe and can be prevented from blockage.

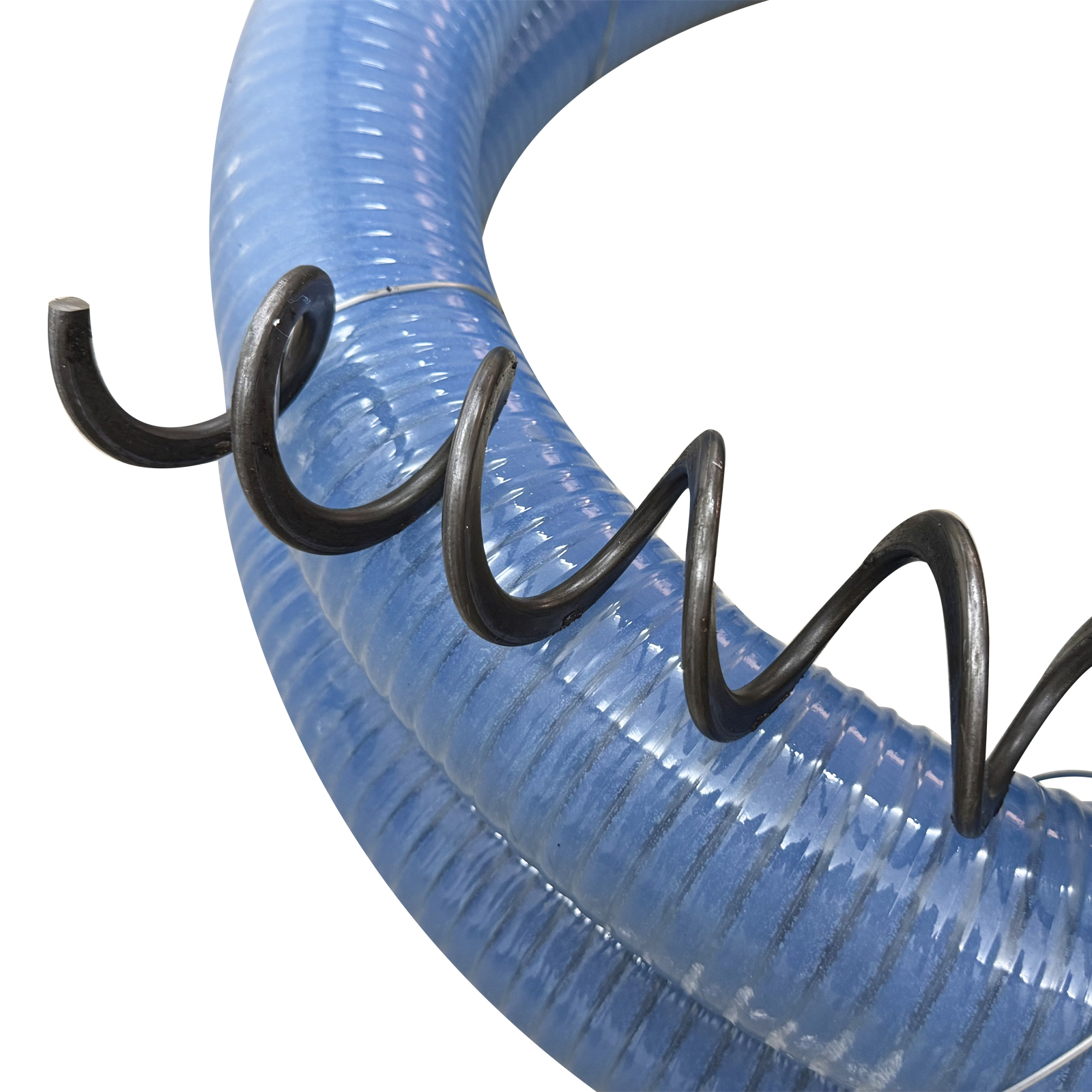

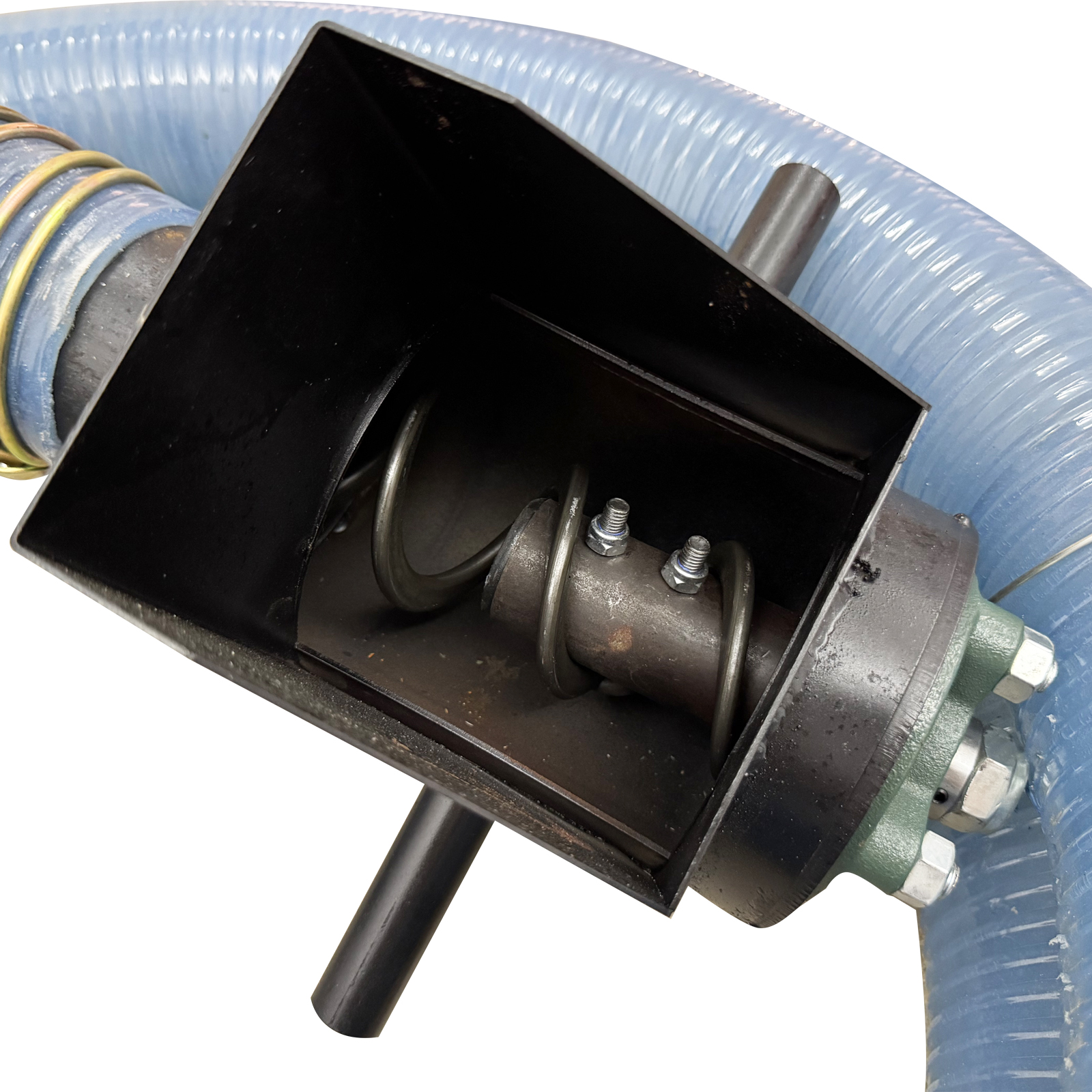

9. The reinforced conveying hose adopts the modular structural design and can be freely combined with the material outlet through buckles to achieve material conveying, and the discharging outlet can be easily placed in all directions, making discharge smooth and effortless.

Operation Method

1. Check the appearance of the machine and check whether the machine is damaged due to long-distance transportation, especially the electrical appliances or wires in the electrical box fall off.

2. Connect the power supply, and ensure that the machine shell is subjected to grounding protection. Start the motor and see if it can work normally.

3. Erect the auger, push it to the construction site and place the lime outlet into the lime inlet hole of the column or beam.

4. When starting to use the machine, the pipe should be moistened with dilute lime, and then can be used normally.

5. After completing the lime pouring operation, use clean water to remove the remaining lime from the pipe of the machine. Clean the hopper, lime pipe and other parts thoroughly.
Product Details

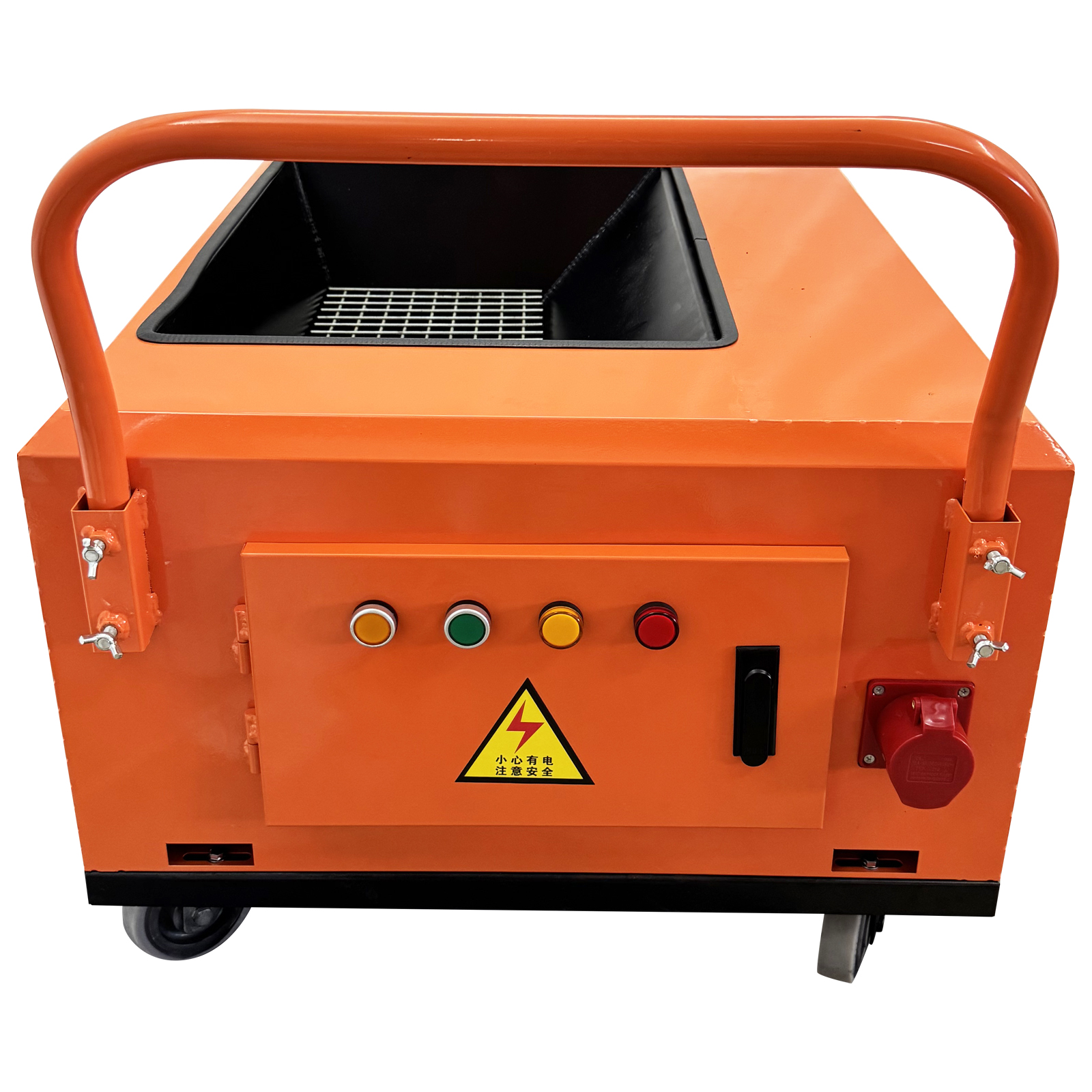

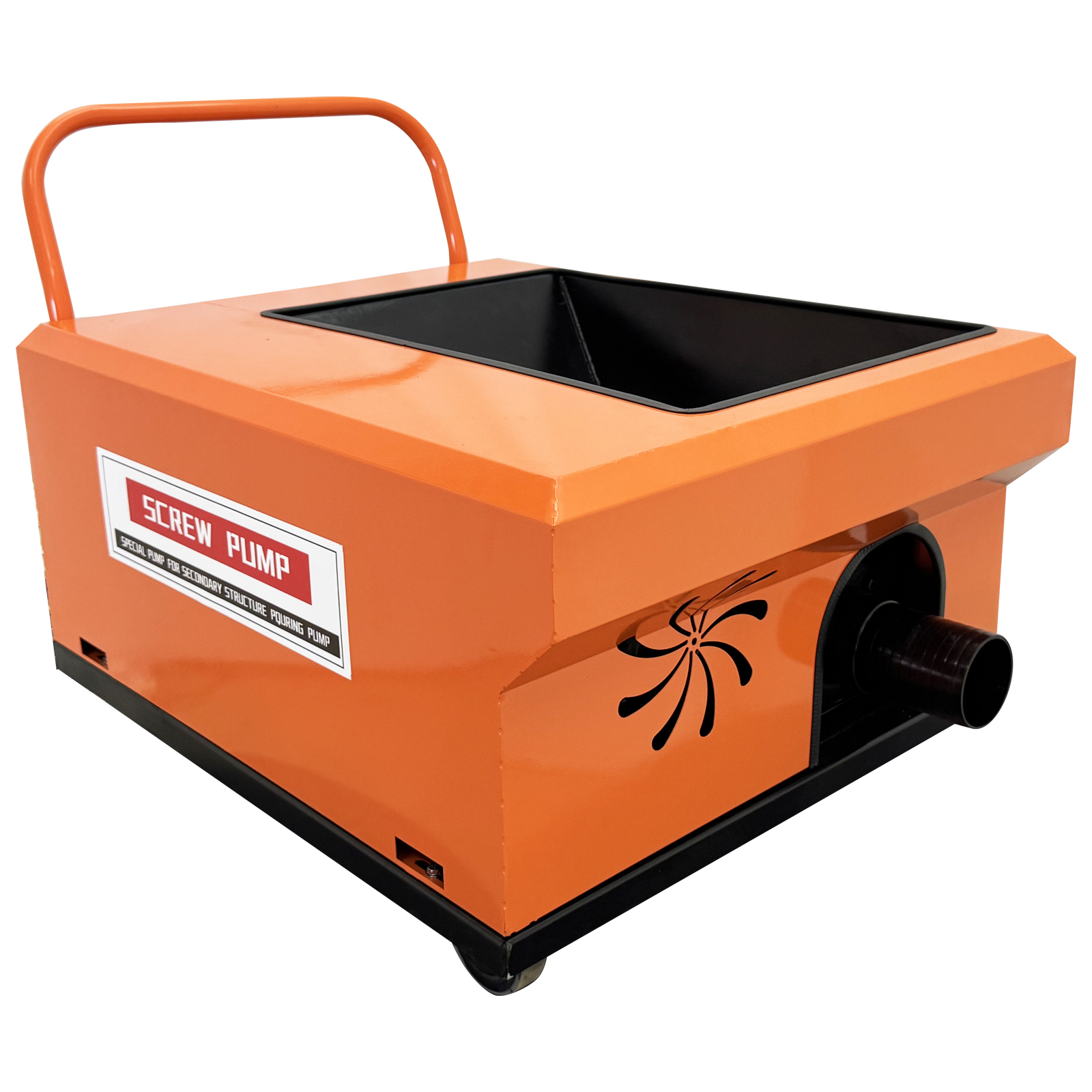

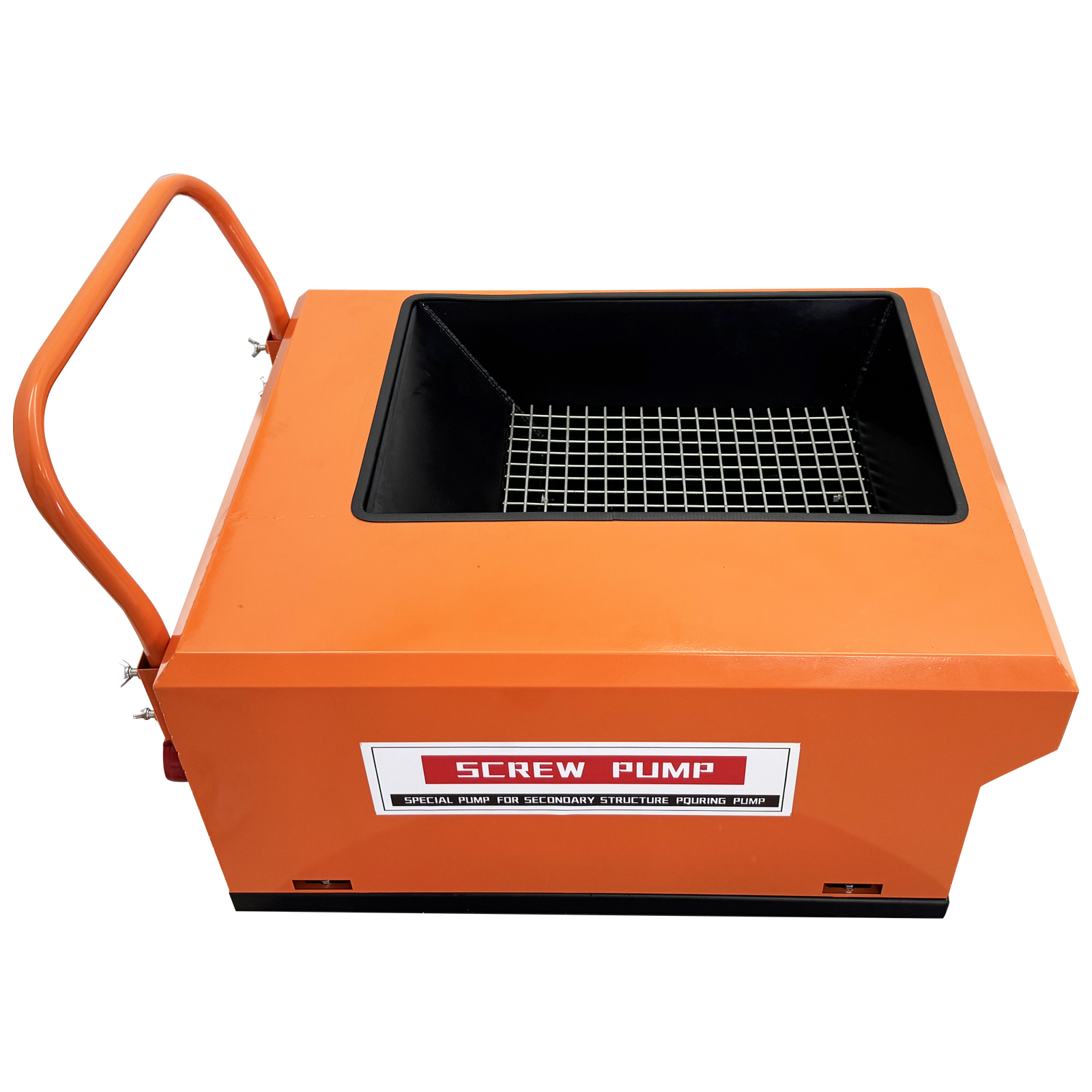

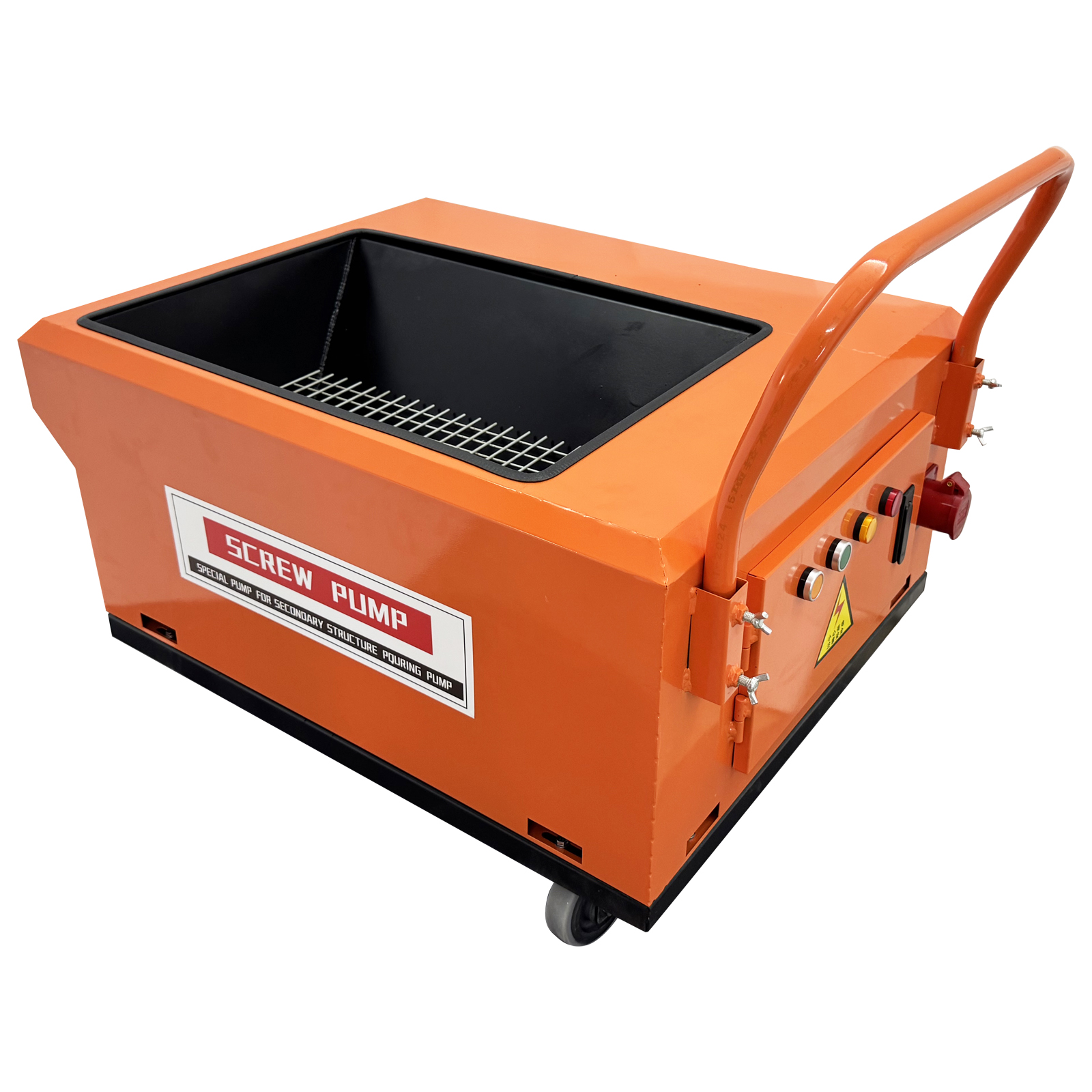

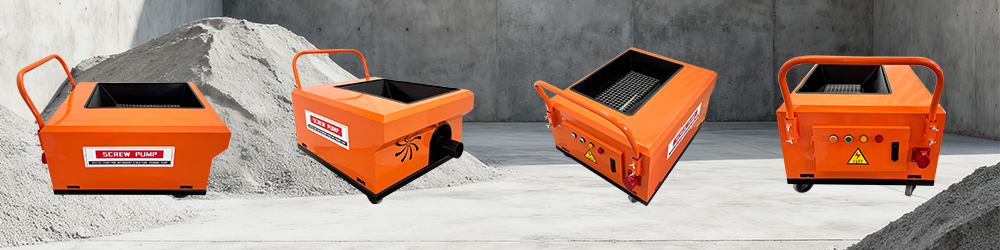

Product Display
Item Number (057203): 1 x Secondary Structure Pouring Machine 220V

You can make order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in normal condition.
Handling Time: Shipping is usually made in 1-3 business days after payments cleared. Orders are processed from Monday-Friday; Not on the weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost.
