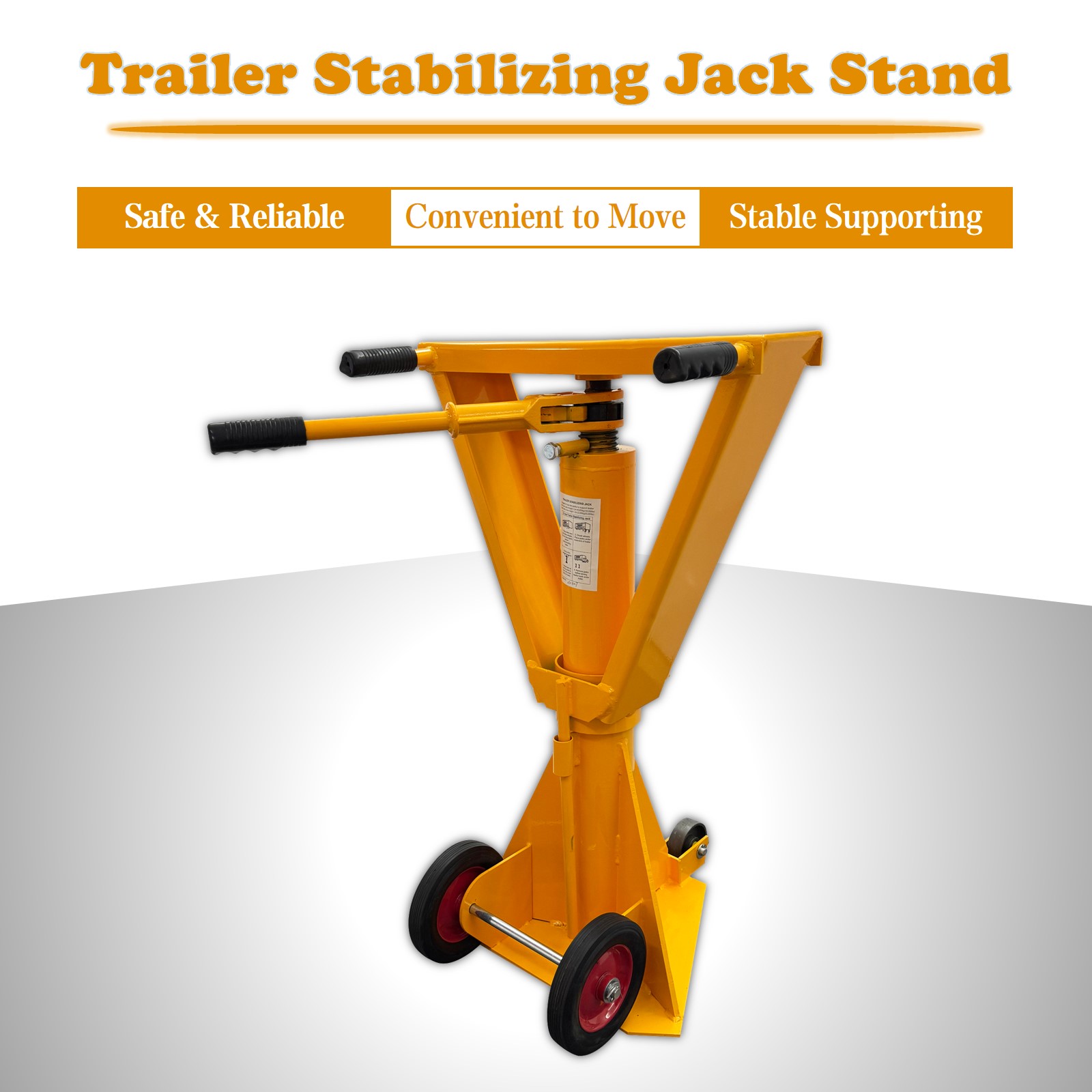

Standard Duty Trailer Stabilizing Jack Stand 100000Lb. Static Capacity |
|
|
|
|
|
|
 |
|
Product
Overview |
| The trailer stabilizing jack
stand is a portable manual mechanical supporting device designed
for jacking and supporting container trucks and trailers. It is
made of Q235 carbon steel, ensuring the durability and
mechanical strength. It has the advantages of being simple in
structure, high in safety, convenient to operate and move, low
in maintenance rate, durable and portable. It is suitable for
auxiliary supporting operation in the unloading and loading
process, truck maintenance, long-term parking supporting and
emergency supporting in the logistics transportation industry,
the building industry, the printing industry, the iron and steel
industry and so on. |
|
|
Product
Parameters |
|

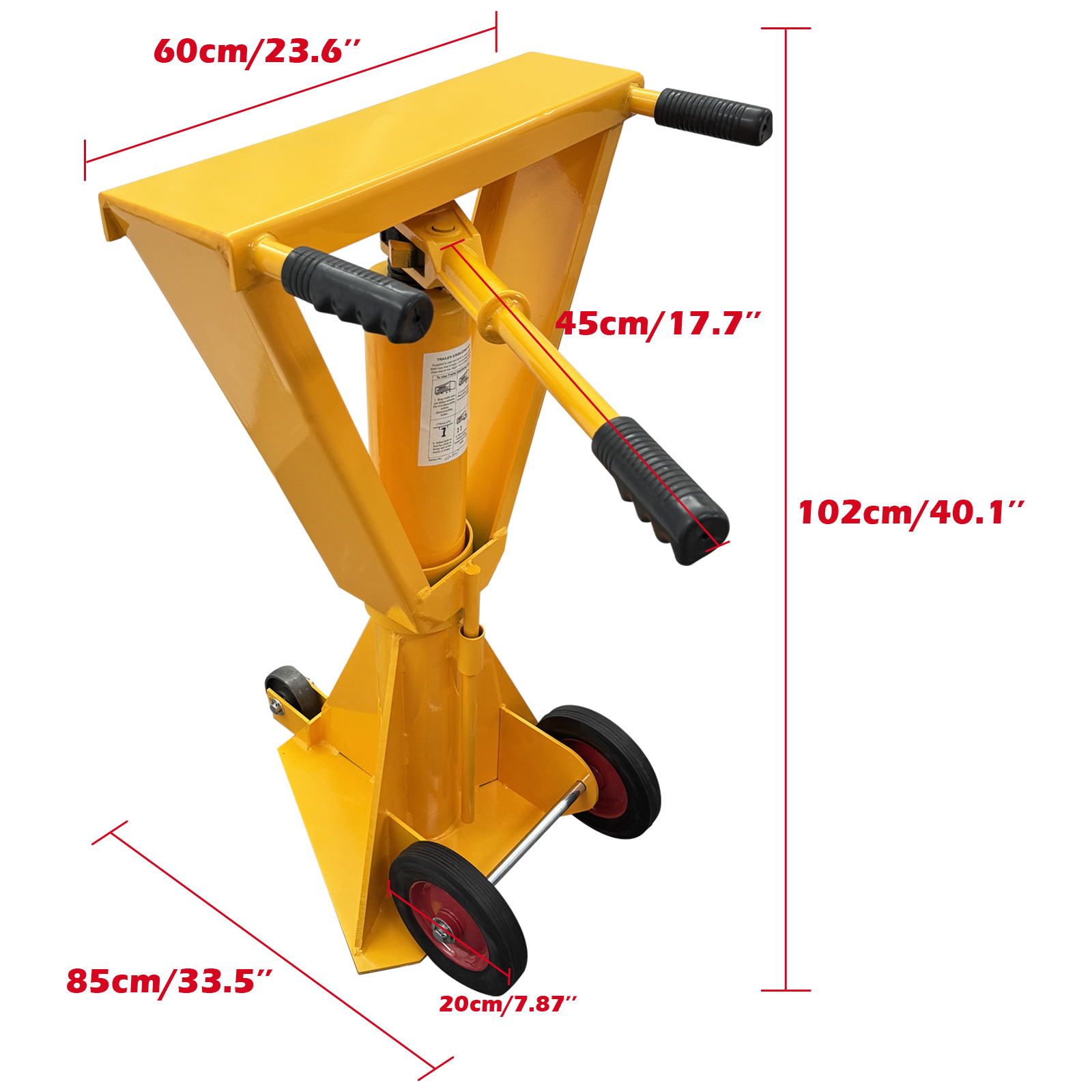

Model |
TJ60 |
|
Working Range |
39.5-51 inches(1000mm-1300mm) |
|
Static Capacity |
100000LBS/45T |
|
Lifting Capacity |
50000LBS/22.7T |
|
Size of Top Plate (LxW) |
23.6x6 inches |
|
Base Plate |
15in triangular |
|
Wheel Diameter |
8in/20cm |
|
Wheel type |
Rubber wheel |
|
Caster Diameter |
4in/10cm |
|
Material |
Q235 carbon steel |
|
Net Weight |
154LBS/70kg |
|
 |
|

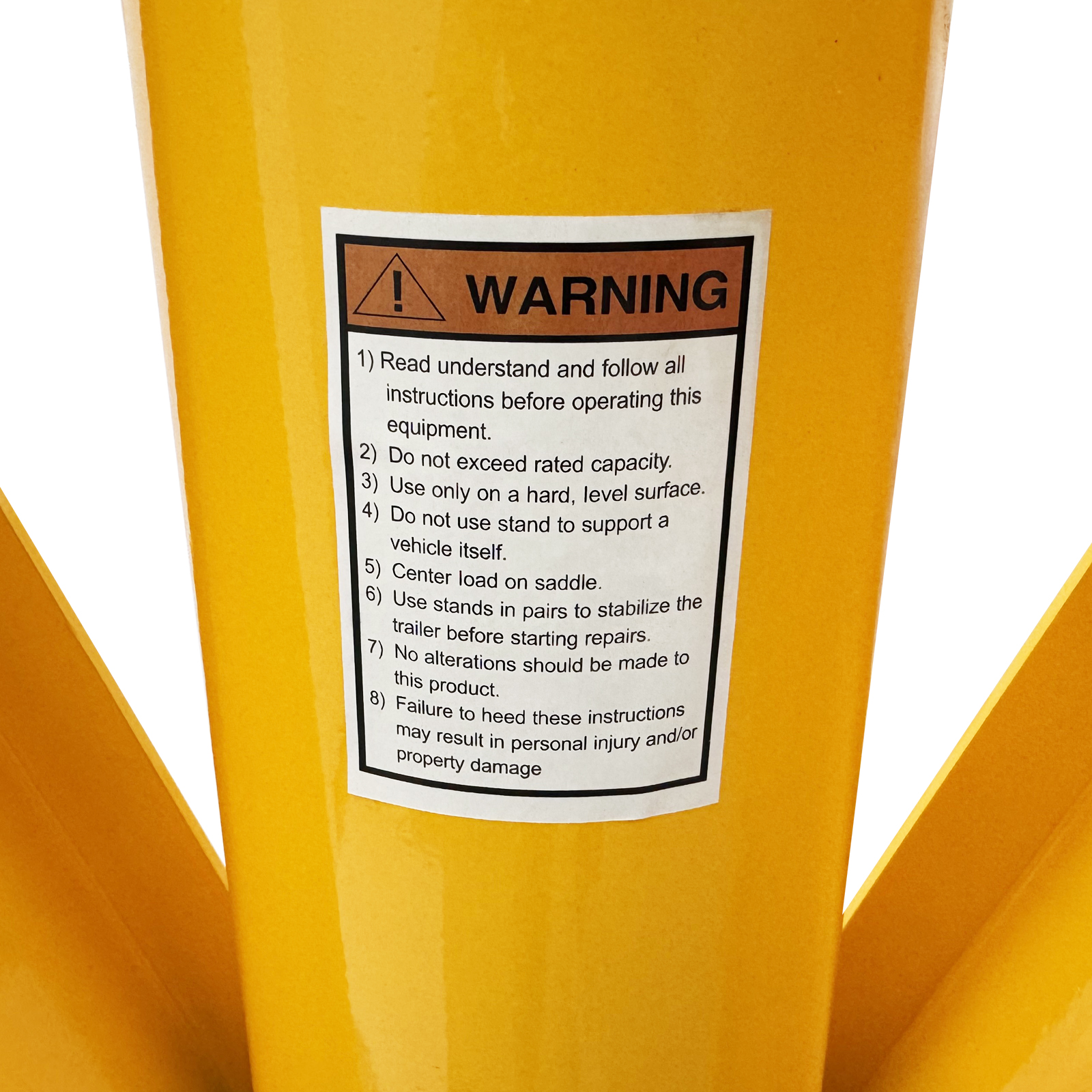

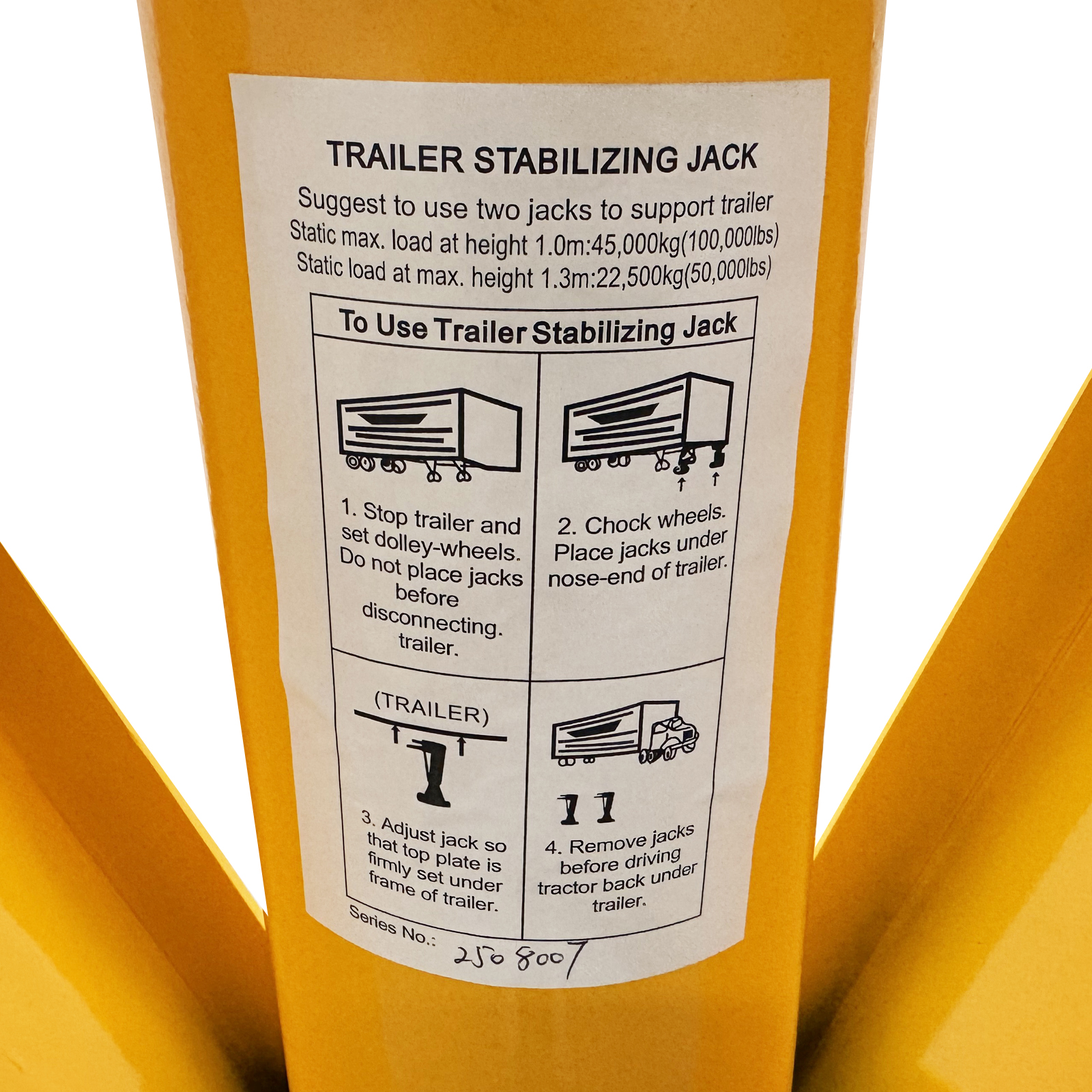

Attention |
|
|
|
Product
Features |
 |
|
|

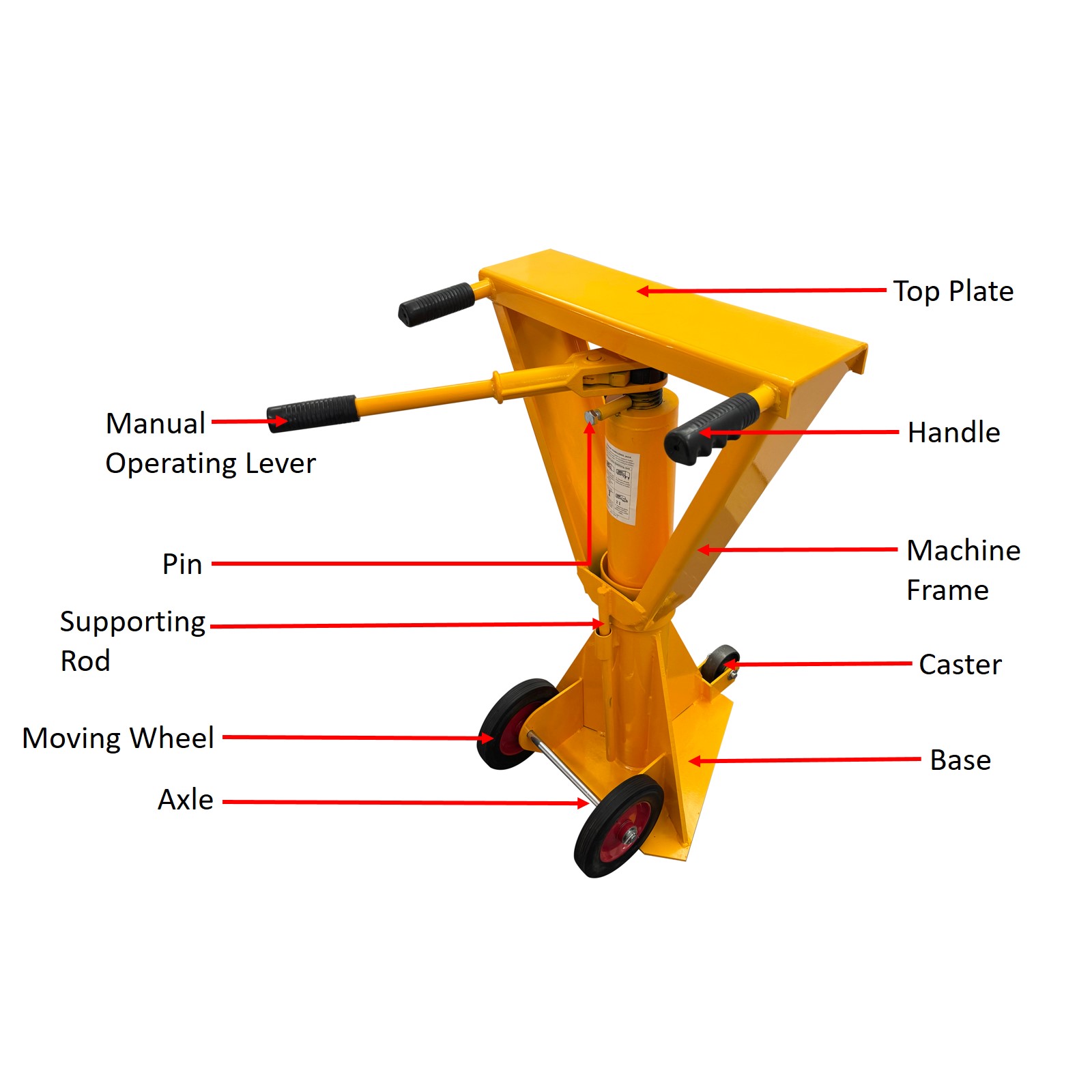

| The
jack stand has the high static load of 100000LBS and the dynamic
load of 50000LBS and can achieve safe and reliable connection
and disconnection of the trailer. The jack is subjected to
surface high-temperature powder coating, making it attractive
and rustproof. |
|
The
manual operating lever provides a key lever force arm to achieve
labor-saving operation. It is simple in structure, firm and
durable and free of maintenance, cannot be affected by the
environment and achieves accurate and controllable jacking
operation. |
|

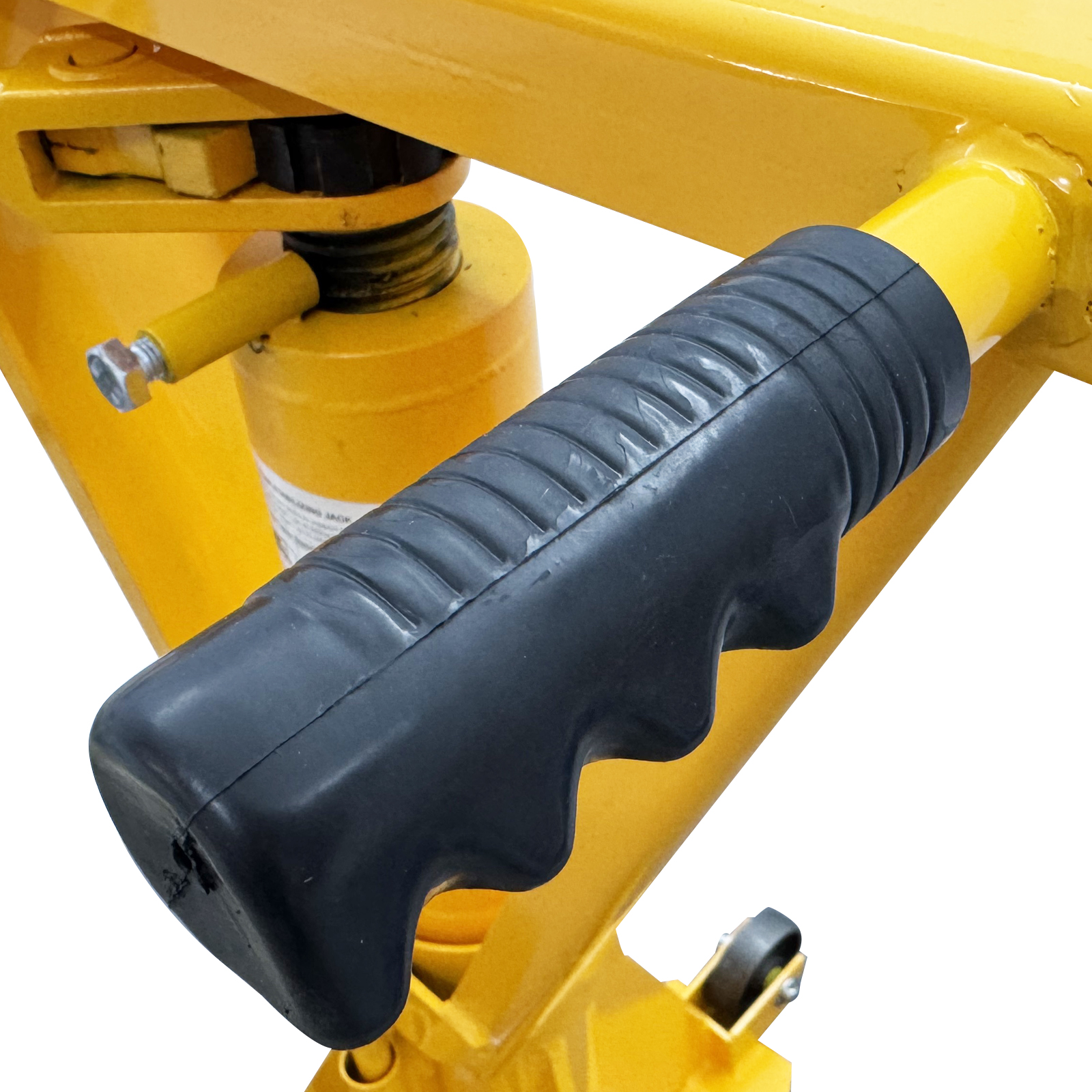

The handles are
adopted to push the jack to move through the cooperation of the
moving wheels.
The ergonomic protective sleeves effectively protect the user
from injuries and accidents. The portability is well guaranteed,
and the practicability is greatly enhanced. |
|
|
|

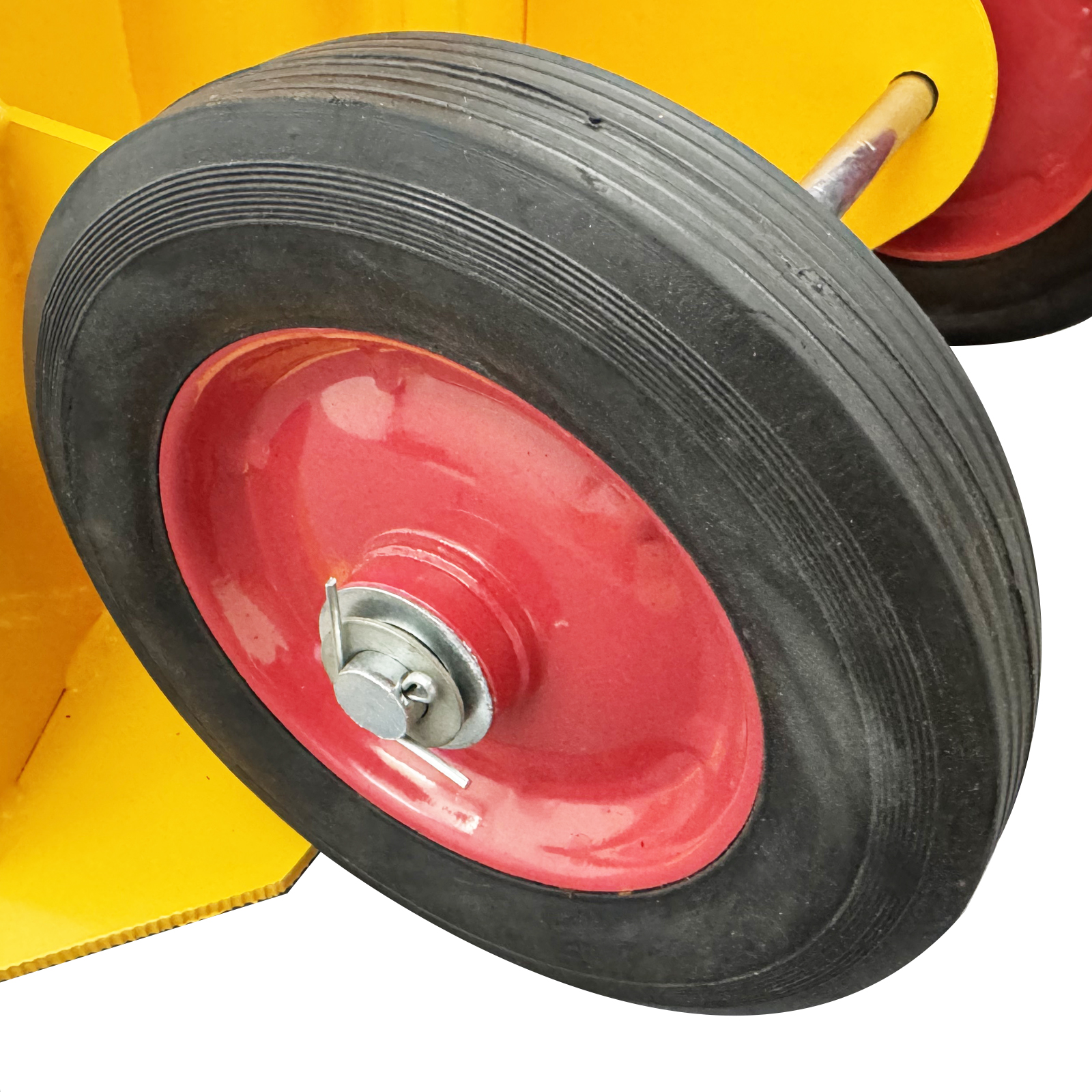

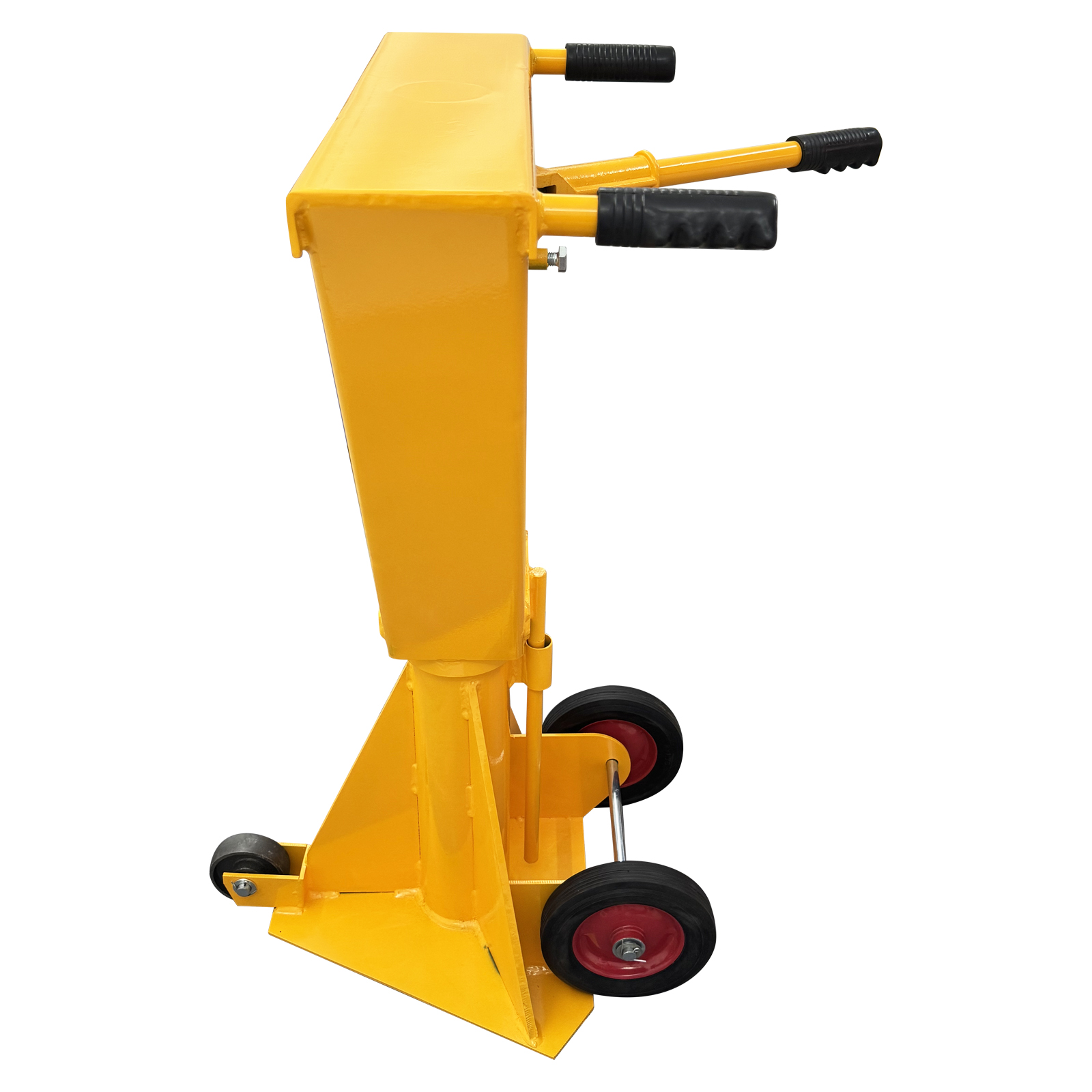

| The
moving wheels has the diameter of 8in/20cm, and can effectively
support the jack body in the moving process. The jack stand can
be conveniently moved to different working environments through
the moving wheels, and the using effect is better. |
|

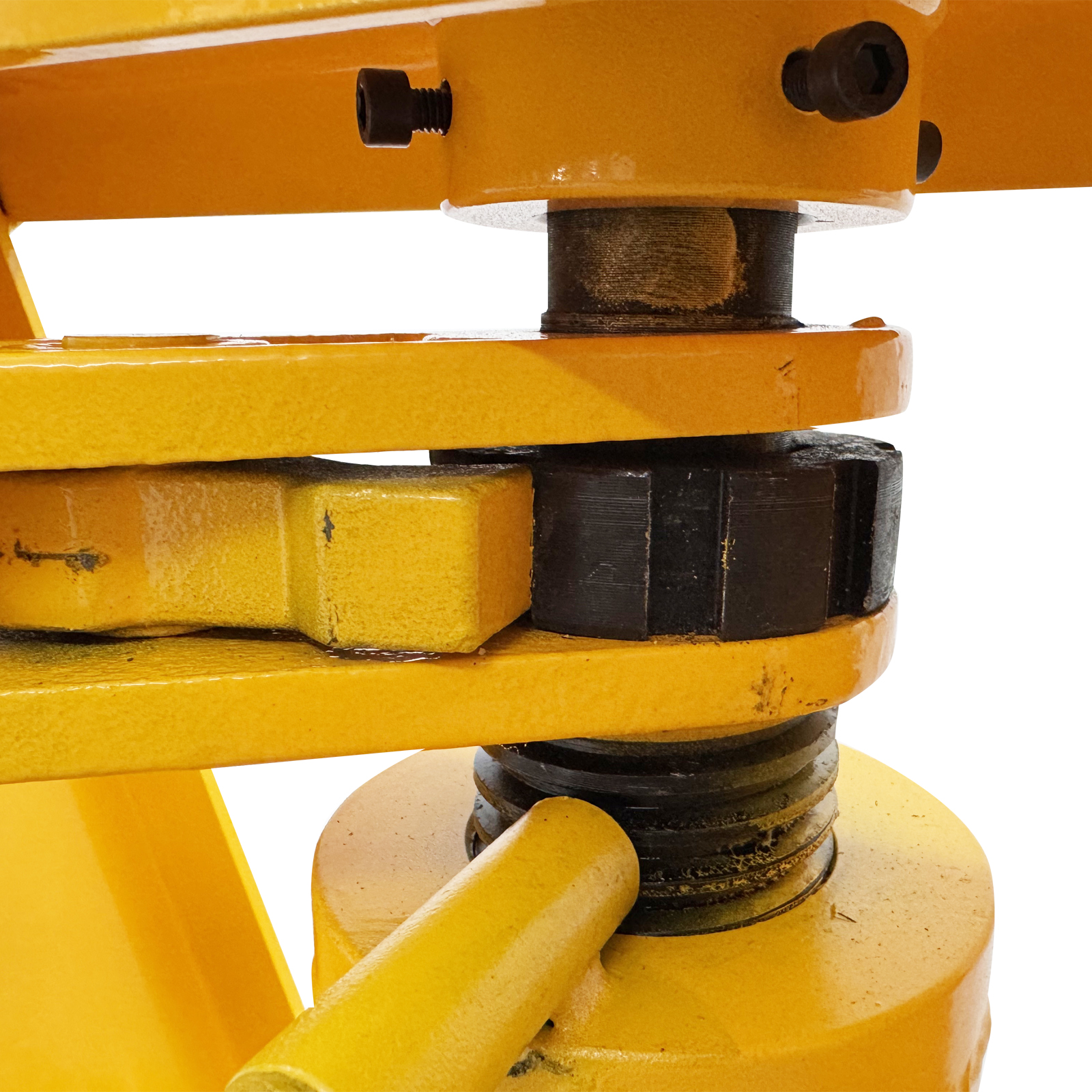

The
high-strength threaded column is adopted to achieve jacking
motions, well ensuring that the trailer can be jacked and
lowered safely and stably. The structural strength is high, and
the service life is long. |
|

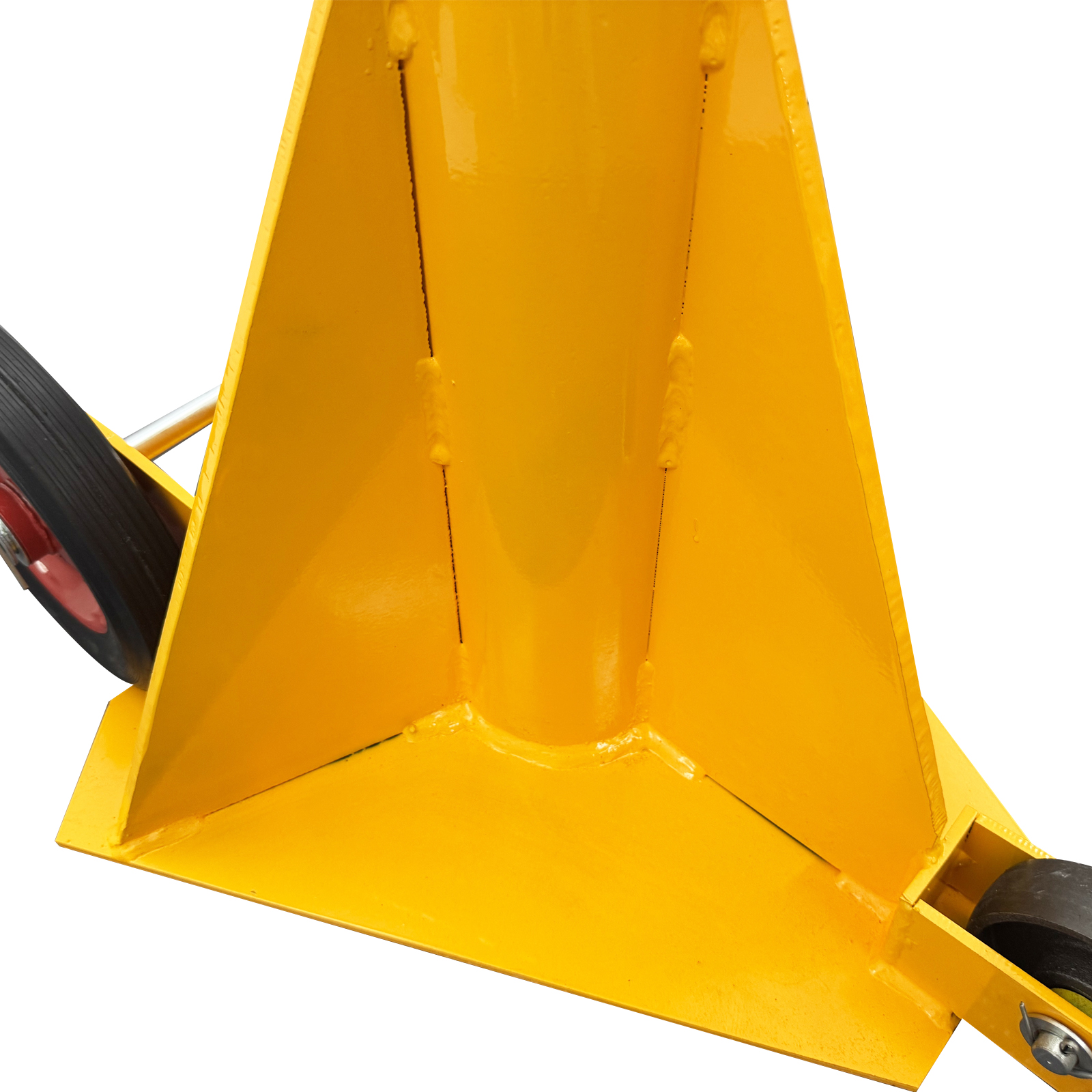

The triangular base
is designed for reliably supporting the jack body, can
effectively prevent the jack body from tilting or falling down
and ensures the safety and stability of the jack stand during
use. |
|
|

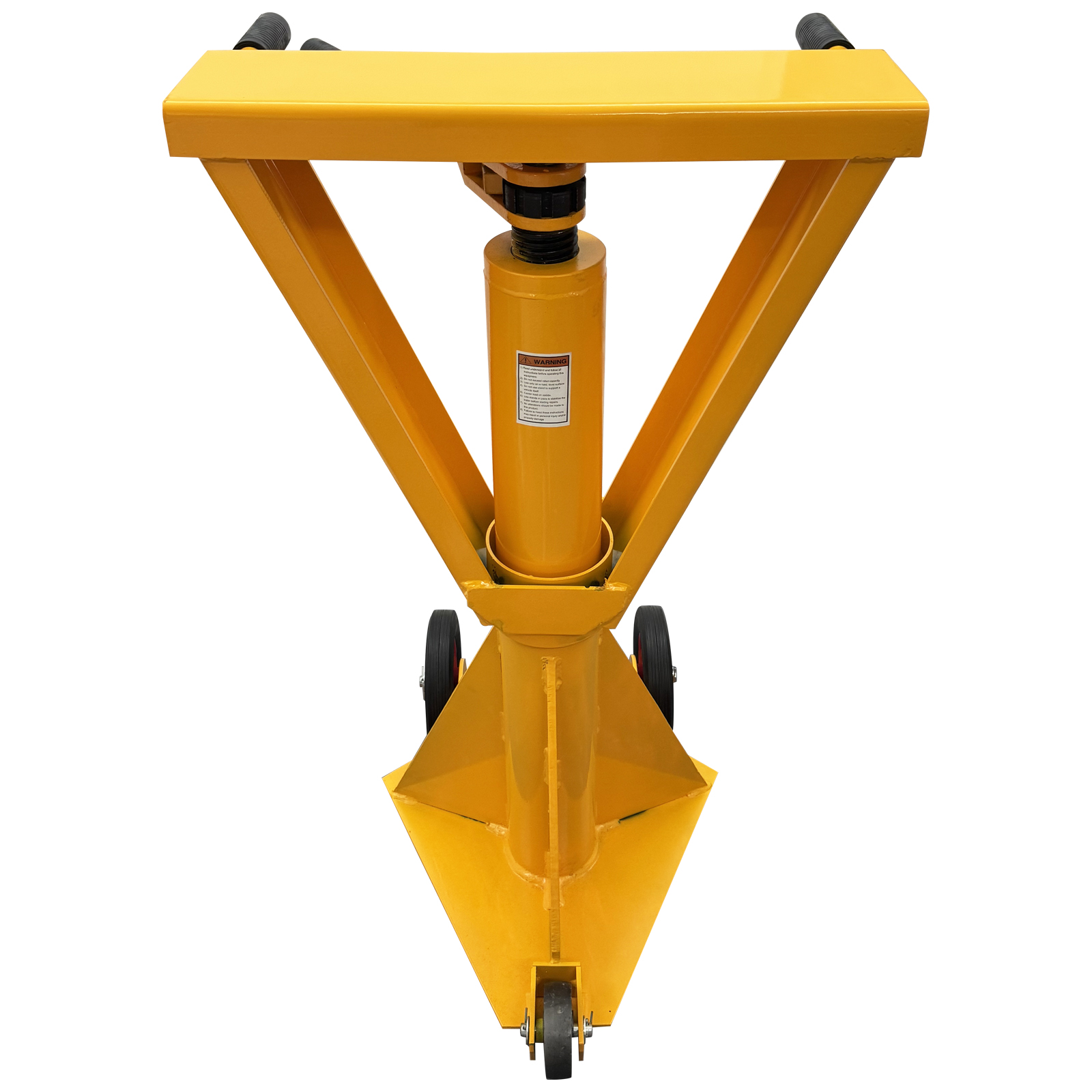

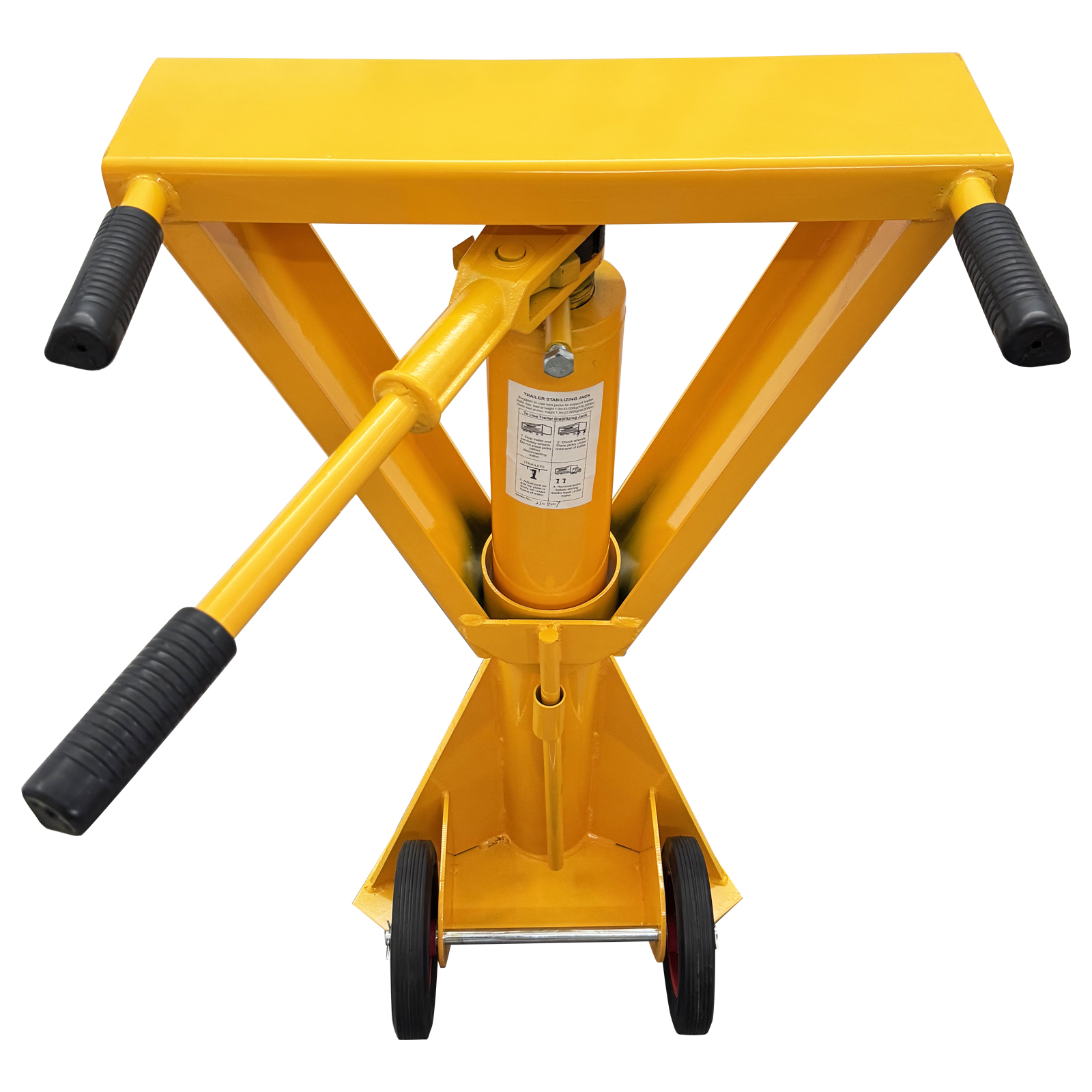

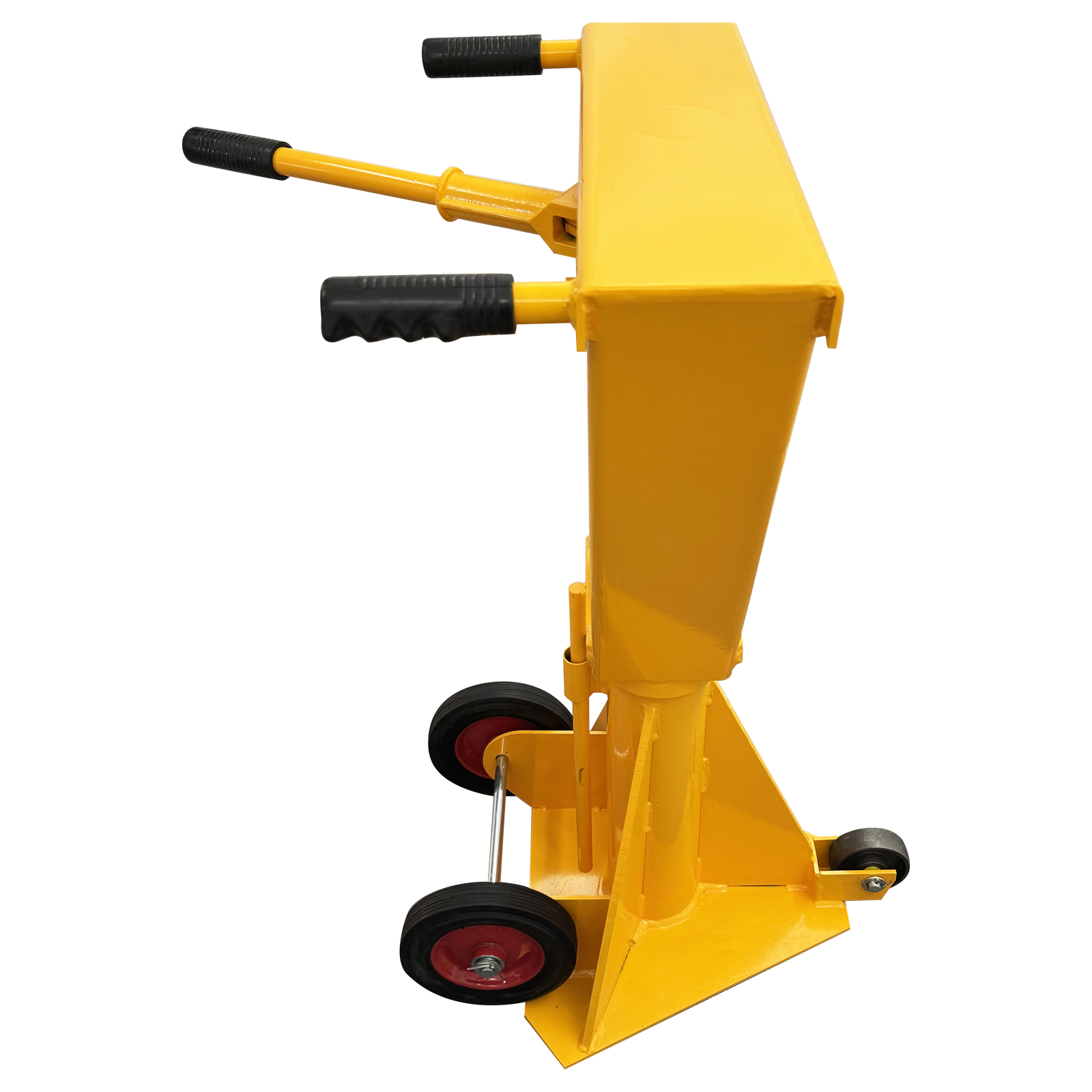

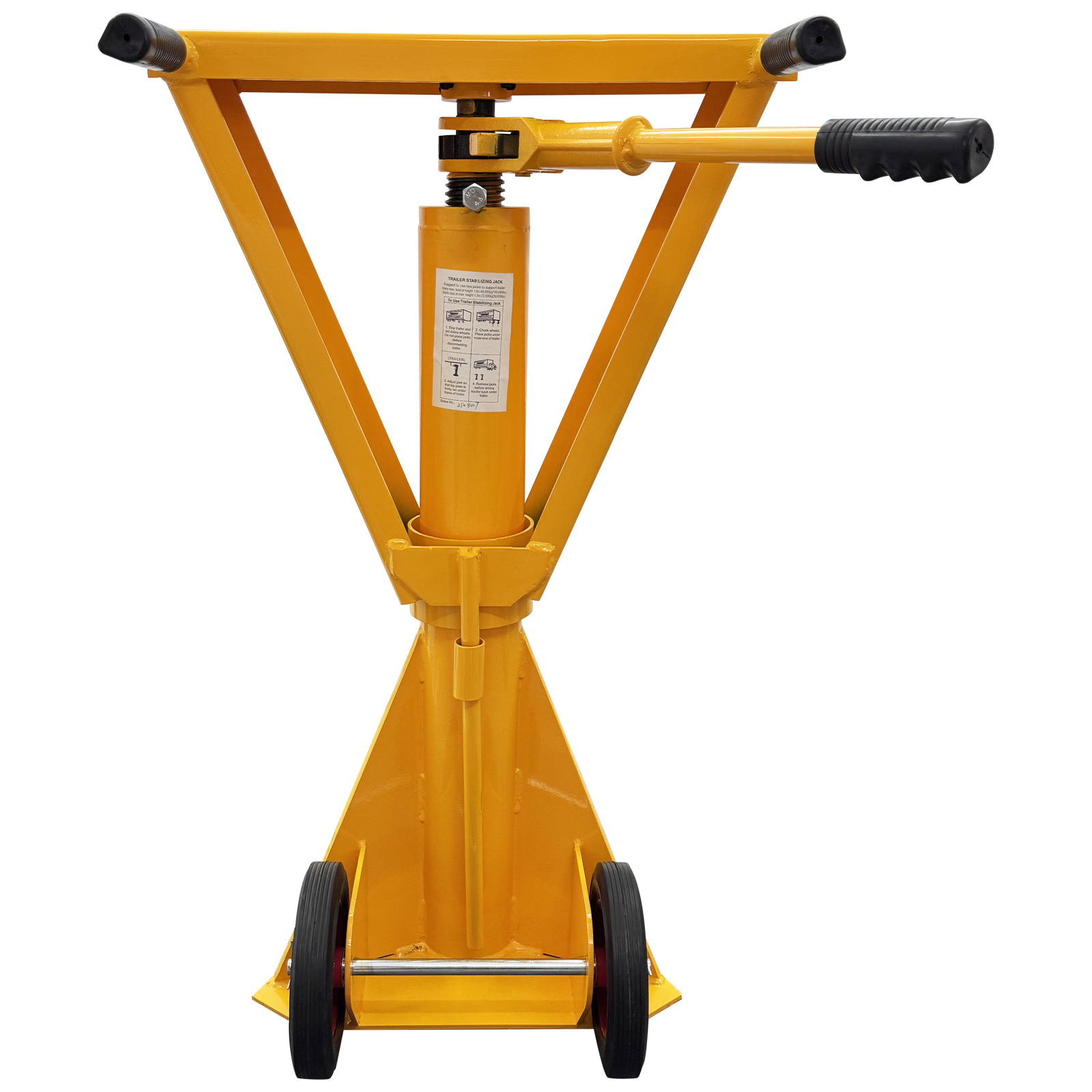

Product
Display |
 |
 |
 |
 |
|
Item Number (057254): 1 x
Standard Duty Trailer Stabilizing Jack Stand |
|
|
You can make
order with no worry.
Any concern just feel free to let us know, we'll reply in 24 hours in
normal condition.
Handling Time: Shipping is usually made in 1-3 business days after
payments cleared. Orders are processed from Monday-Friday; Not on the
weekends & public holidays.
Warranty: 6 months' warranty for the machines, not for the consumables.
We stand behind our products all the item, so even if your warranty
period has expired, you can still seek for service or technical support
from us with low cost. |
|
